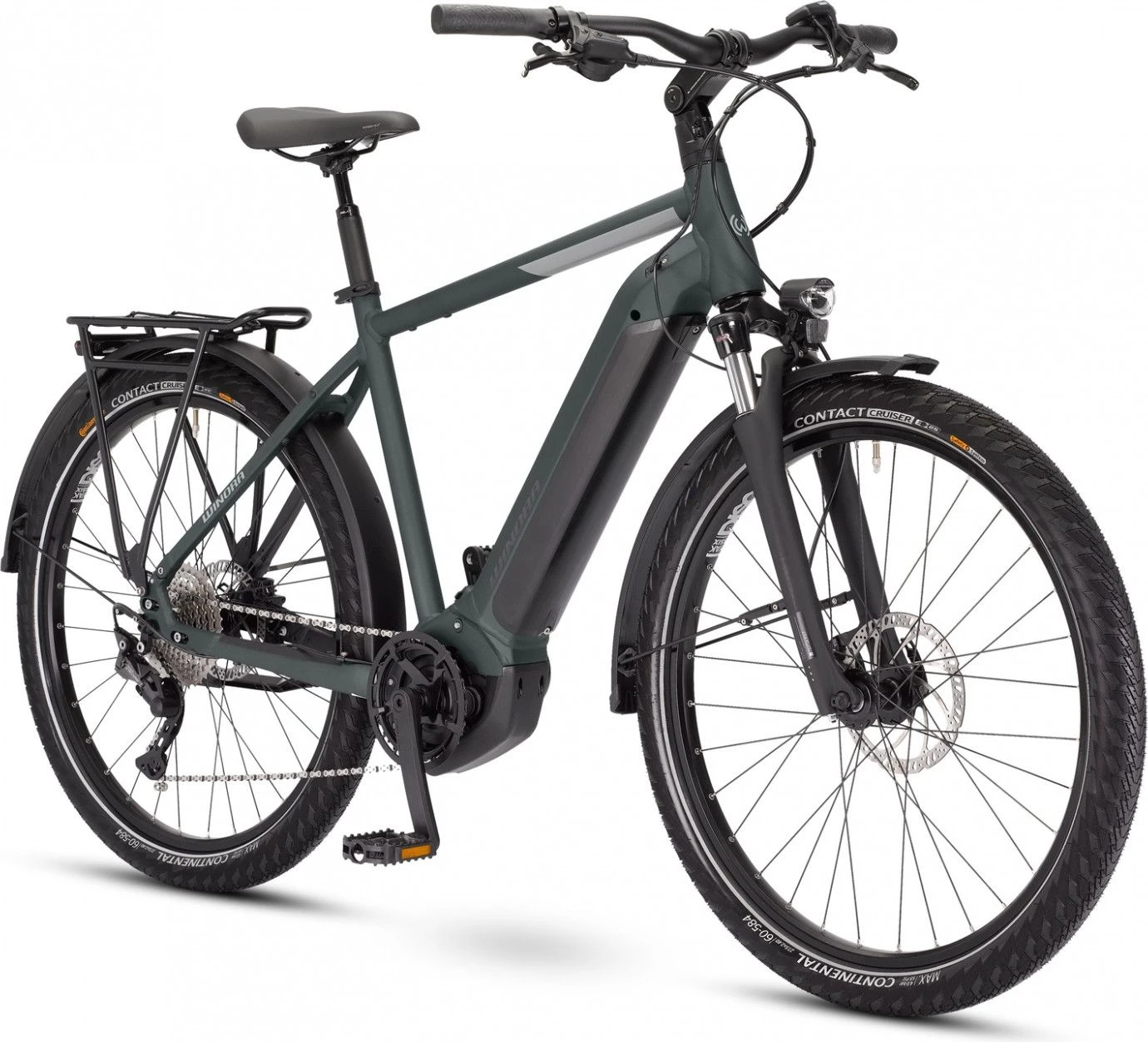

Winora Yucatan 10 Gent 27.5 ” Electric City Bike 630Wh Shimano Deore 10V Emerald Green 2022
Original price was: $370.00.$98.99Current price is: $98.99.
- Unbeatable Quality Guaranteed
- Experience Quality, Shop with Us
- Fast, friendly, always here to help.
- Hassle-Free Payments
Note : Please note that specifications are subject to change without notice, based on component availability and other factors.
Racy, our Yucatan electric trekking bikes are designed for the stylish adventurer looking for a reliable model for the road and easy trails. Whether for sporty, comfortable rides or simply to set off on short notice, our Winora Yucatan 10 is always ready. Yamaha’s powerful PW-ST motor with 70Nm of torque, Shimano 10-speed derailleur and reliable disc brakes ensure you explore new routes and territory for longer in total comfort. Sturdy 27.5 ” Continental tires and a front suspension fork ensure you reach your destination in comfort, even off-road. This bike is also equipped with lights, fenders and a sturdy luggage rack to carry everything you need for your next getaway. And then it has the dog: the battery integrated into the frame of 630 Wh gives this model a racy sporty look that will do you honor on all journeys.
The + product:
- 6061 aluminum frame with battery on the down tube
- Shimano Deore M4100 1×10-speed drivetrain
- Chain protection
- Tektro T275 disc brakes, 180/160 mm
Details:
| Framework | Aluminum: Winora, Aluminum 6061, Yamaha InTube 630, HD Interface, Aluminum 6061 |
| Fork | SR Suntour, NEX E25-HLO, Lockout, Steel spring, Travel = 63 mm, Aluminum steerer tube 1 1/8 “- 1 1/2” tapered |

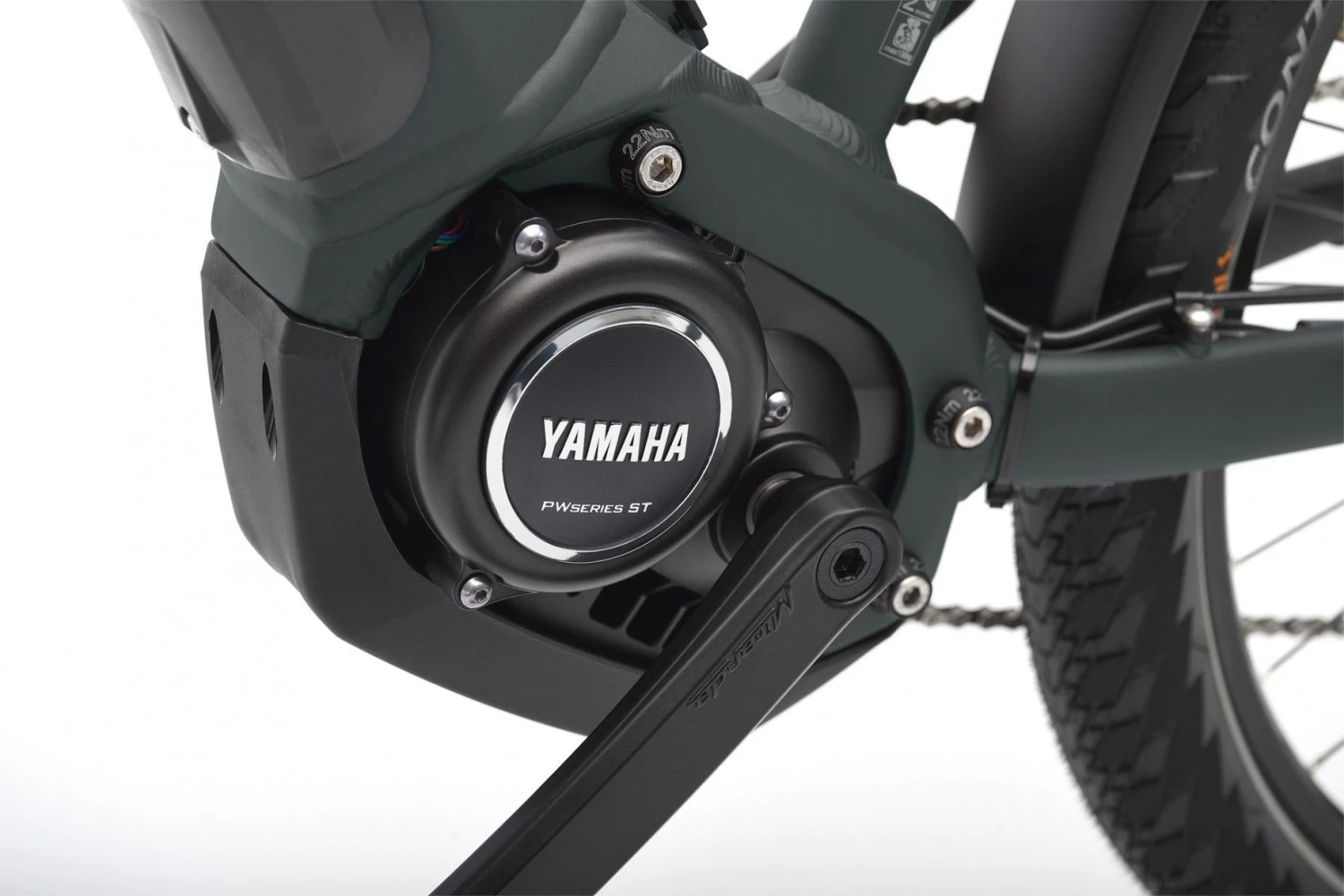

| Motor | Yamaha, PW-ST System, 250W, 70 Nm, 25 km / h |

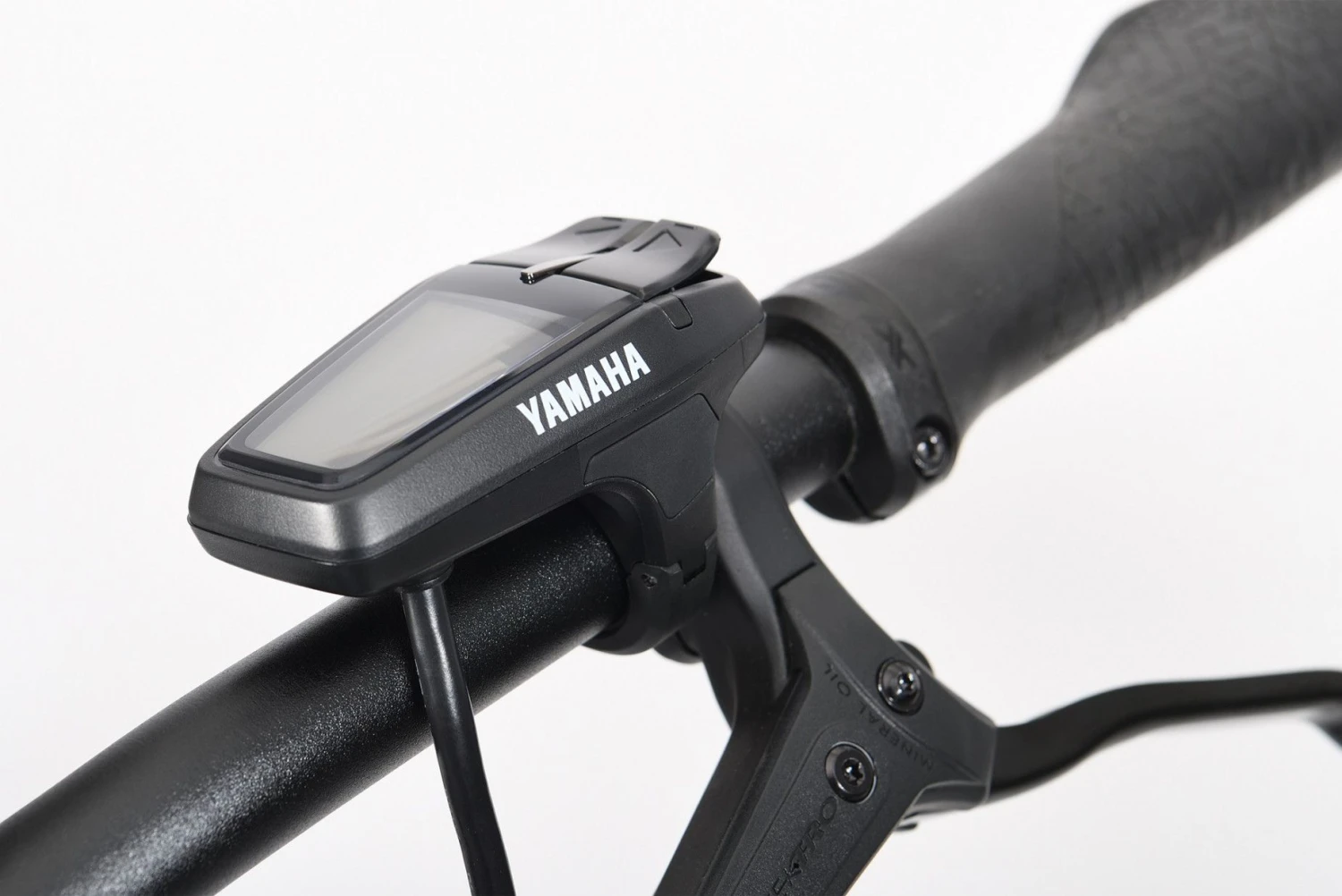

| Screen | Yamaha, Side Switch, 1.7 “LCD, 7 functions |
| Drums | InTube, 630 Wh |
| Derailleur lever | Shimano, Deore M4100, Trigger switch, 10 speed |
| Rear derailleur | Shimano, Deore M4120 |
| Cassette | Shimano, CSM4100, 11 – 42 teeth |
| Chain | KMC, e10S |
| Crankset | Winora, forged, Aluminum, 38 teeth |

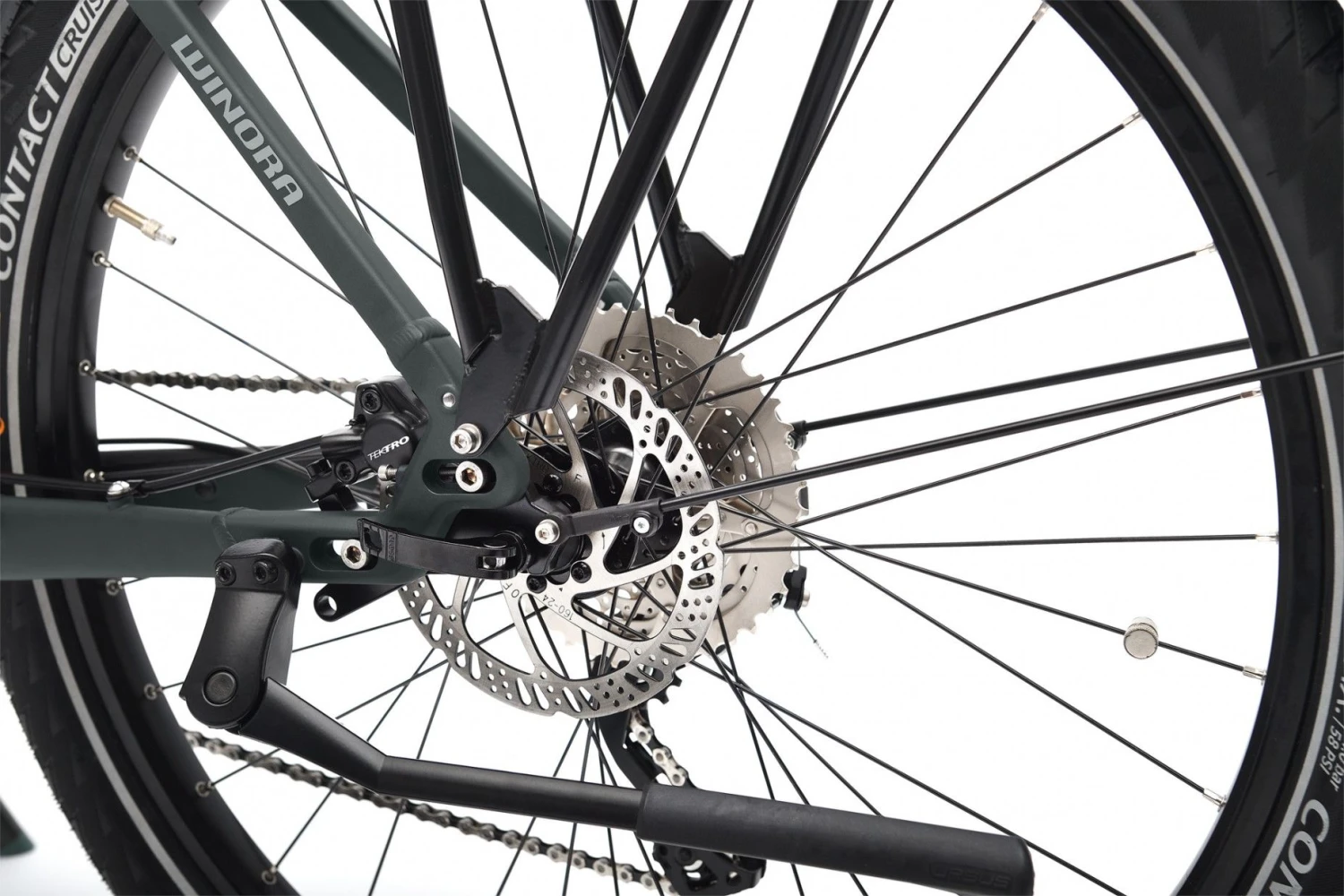

| Brakes | F: Tektro, T275, 180 mm, 2-piston disc brake / R: Tektro, T275, 160 mm, 2-piston disc brake |
| Wheels | Schürmann, Yak25, with eyelets, hollow rim, Aluminum |
| Tires | Continental, Contact Cruiser, 62-584, 27.5 “x 2.4” |
| Handlebar | Ergoriser, oversize, 720 mm |
| Handles | XLC, Comfort bo3 |
| Gallows | Alu, winkelverstellbar, A-head, Bar bore: 31.8 mm |
| Headset | Feimin, A-Head Tapered, Aluminum, Cartridge |

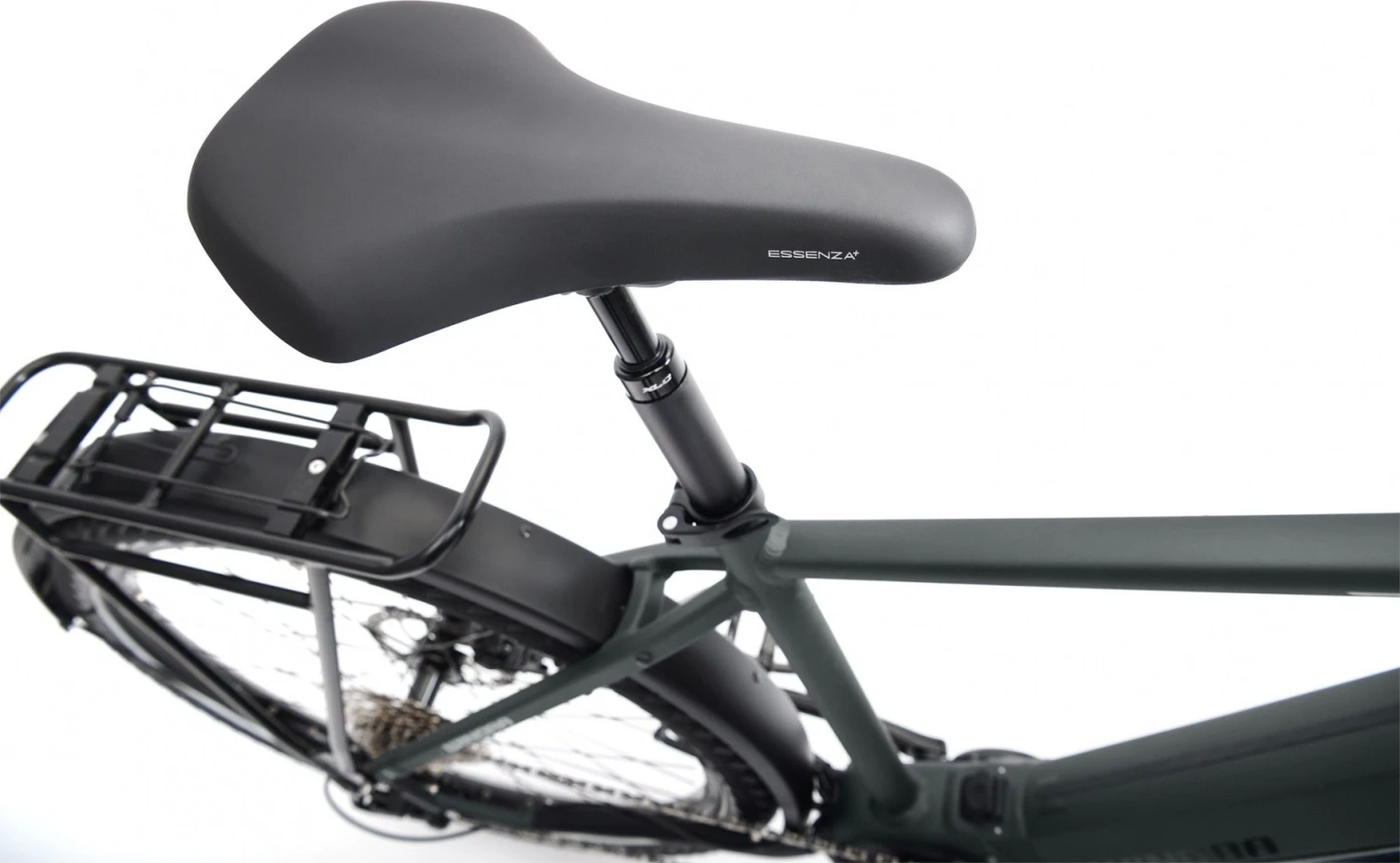

| Saddle | Selle Royal, Essenza |
| Saddle stem | Aluminum, Patent suspension, 31.6 mm |
| Pedals | VP, E461, Aluminum, with Reflector |

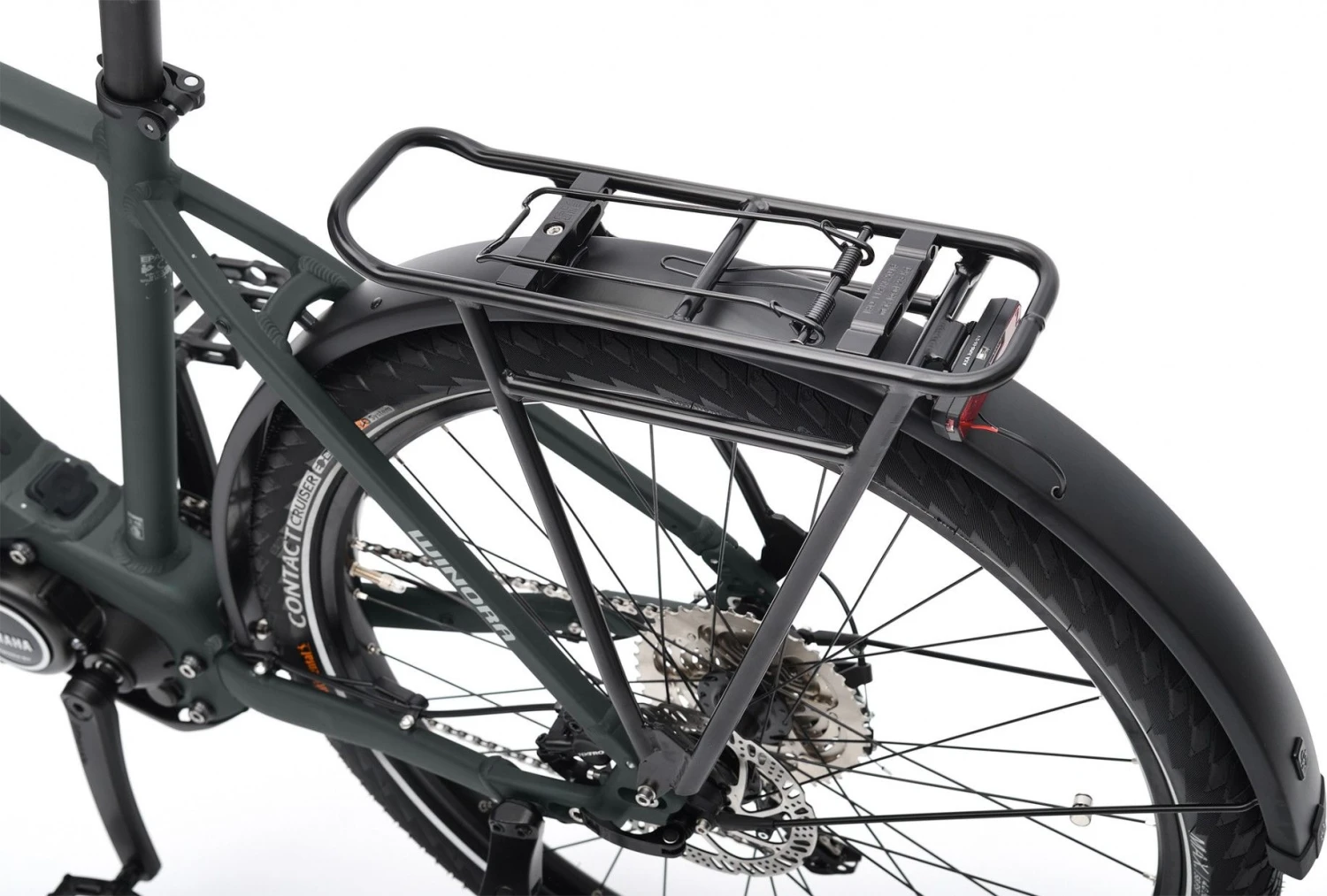

| Luggage rack | Racktime, RT-336, 25.0 kg |
| Lighting | F: Herrmans, H-Black MR4, 40 lm / R: AXA, Juno Ebike |
| Crutch | Ursus, Mooi, Rear stand |
| Mudguard | SKS, Chromoplastics |
| Max weight | Permissible total weight 130 kg |
Geometries:
| Frame size (cm) | 48 | 52 | 56 | 60 |
| Seat tube (mm) | 480 | 520 | 560 | 600 |
| Top tube (mm) | 595 | 610 | 625 | 640 |
| Base length (mm) | 475 | 475 | 475 | 475 |
| Head tube (mm) | 155 | 155 | 160 | 175 |
| Steering angle (°) | 70.5 | 70.5 | 70.5 | 70.5 |
| Seat tube angle (°) | 73 | 73 | 73 | 73 |
| Wheelbase (mm) | 1123 | 1139 | 1154 | 1169 |
MORE INFORMATION
| Framework | Aluminum: Winora, Aluminum 6061, Yamaha InTube 630, HD Interface, Aluminum 6061 |
| Fork | SR Suntour, NEX E25-HLO, Lockout, Steel spring, Travel = 63 mm, Aluminum steerer tube 1 1/8 “- 1 1/2” tapered |
| Motor | Yamaha, PW-ST System, 250W, 70 Nm, 25 km / h |
| Screen | Yamaha, Side Switch, 1.7 “LCD, 7 functions |
| Drums | InTube, 630 Wh |
| Derailleur lever | Shimano, Deore M4100, Trigger switch, 10 speed |
| Rear derailleur | Shimano, Deore M4120 |
| Cassette | Shimano, CSM4100, 11 – 42 teeth |
| Chain | KMC, e10S |
| Crankset | Winora, forged, Aluminum, 38 teeth |
| Brakes | F: Tektro, T275, 180 mm, 2-piston disc brake / R: Tektro, T275, 160 mm, 2-piston disc brake |
| Wheels | Schürmann, Yak25, with eyelets, hollow rim, Aluminum |
| Tires | Continental, Contact Cruiser, 62-584, 27.5 “x 2.4” |
| Handlebar | Ergoriser, oversize, 720 mm |
| Handles | XLC, Comfort bo3 |
| Gallows | Alu, winkelverstellbar, A-head, Bar bore: 31.8 mm |
| Headset | Feimin, A-Head Tapered, Aluminum, Cartridge |
| Saddle | Selle Royal, Essenza |
| Saddle stem | Aluminum, Patent suspension, 31.6 mm |
| Pedals | VP, E461, Aluminum, with Reflector |
| Luggage rack | Racktime, RT-336, 25.0 kg |
| Lighting | F: Herrmans, H-Black MR4, 40 lm / R: AXA, Juno Ebike |
| Crutch | Ursus, Mooi, Rear stand |
| Mudguard | SKS, Chromoplastics |
| Max weight | Permissible total weight 130 kg |
| Frame size (cm) | 48 | 52 | 56 | 60 |
| Seat tube (mm) | 480 | 520 | 560 | 600 |
| Top tube (mm) | 595 | 610 | 625 | 640 |
| Base length (mm) | 475 | 475 | 475 | 475 |
| Head tube (mm) | 155 | 155 | 160 | 175 |
| Steering angle (°) | 70.5 | 70.5 | 70.5 | 70.5 |
| Seat tube angle (°) | 73 | 73 | 73 | 73 |
| Wheelbase (mm) | 1123 | 1139 | 1154 | 1169 |
| Gender |
Men Women |
| Groupe | Shimano Deore M4100 10V |
| collection | Fins de Séries |
| Size | 52 cm / 170-178 cm, 56 cm / 177-186 cm, 60 cm / 185-195 cm |
|---|
