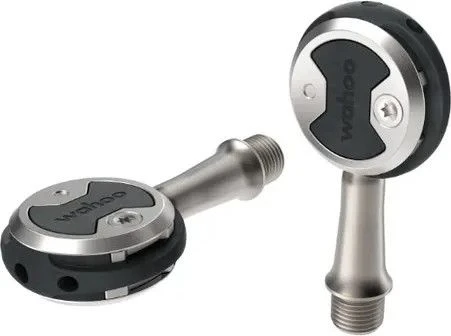

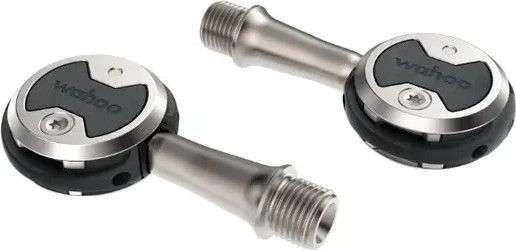

The Speedplay Nano is a featherweight, dual-sided road pedal that lives up to the demands of sprint finishes, categorized climbs, and tough training sessions. The mix of premium titanuim and carbon fiber materials create a lightweight but strong pedal that will hold up and deliver speed on the breakaway. The integrated cleat system with 3-axis adjustability allows you to precisely dial in your fit for optimized biometrics and increased power transfer.
Â
Main features:
- Dual-side entry: Speedplay Nano pedals’ symmetrical form factor allows for dual-sided entry when clipping in. No more fumbling, fussing or kicking your pedal over; take off when the light turns green and clip in with ease.
- Optimized biomechanics: The 3-axis adjustability and slim stack height of the SPEEDPLAY Advanced Pedal System allows the rider to customize their fit on the bike with the largest range of optionality. The lower stack height can allow for increased power transfer and a decreased saddle height, which results in reduced drag.

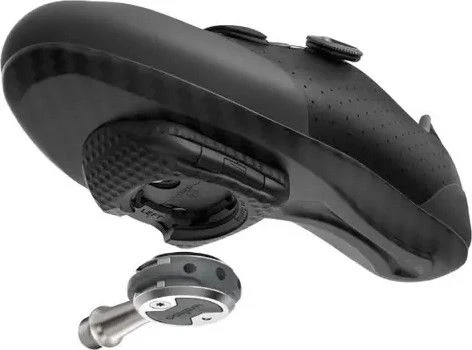

- Integrated profile: Speedplay Nano and Easy Tension Cleat create a seamless integration for a streamlined profile. The secure connection can contribute to an increase in the transfer of power, which can make it easier to attain those hard fought watts.
Details :
- Physical Dimensions: 3.9″ x 2″ x 2″
- Weight: 168g per pair
- Stack Height: 11.5mm (3 hole) 8.5 (4 hole)
- Q Factor: 53mm
- Body Material: Carbon Composite
- Spindle Material: Titanium
- Bearing Type: Triple Sealed Cartridge & Needle Bearings
- Cornering Clearance: 39°
- Max Rider Weight: 180lb / 82kg

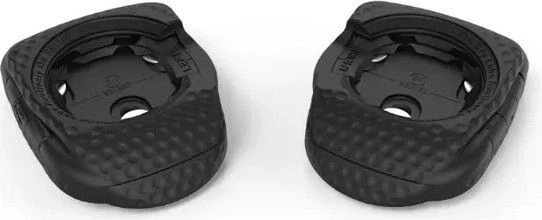

- Cleats: Standard Tension Included
- Release Angle: Micro Adjustable from 0° to 7.5°
- Pedal Float: Adjustable from 0° to 15°
- Cleat Fore – Aft Adjustability: Up to 13mm
- Cleat Left – Right Adjustability: Up to 8mm
- Walkable Cleat: Yes (adaptor included)
- Reference :Â WFPRN1S53
MORE INFORMATION
| Axis Material | Titanium |
| Body Material | Carbon |
