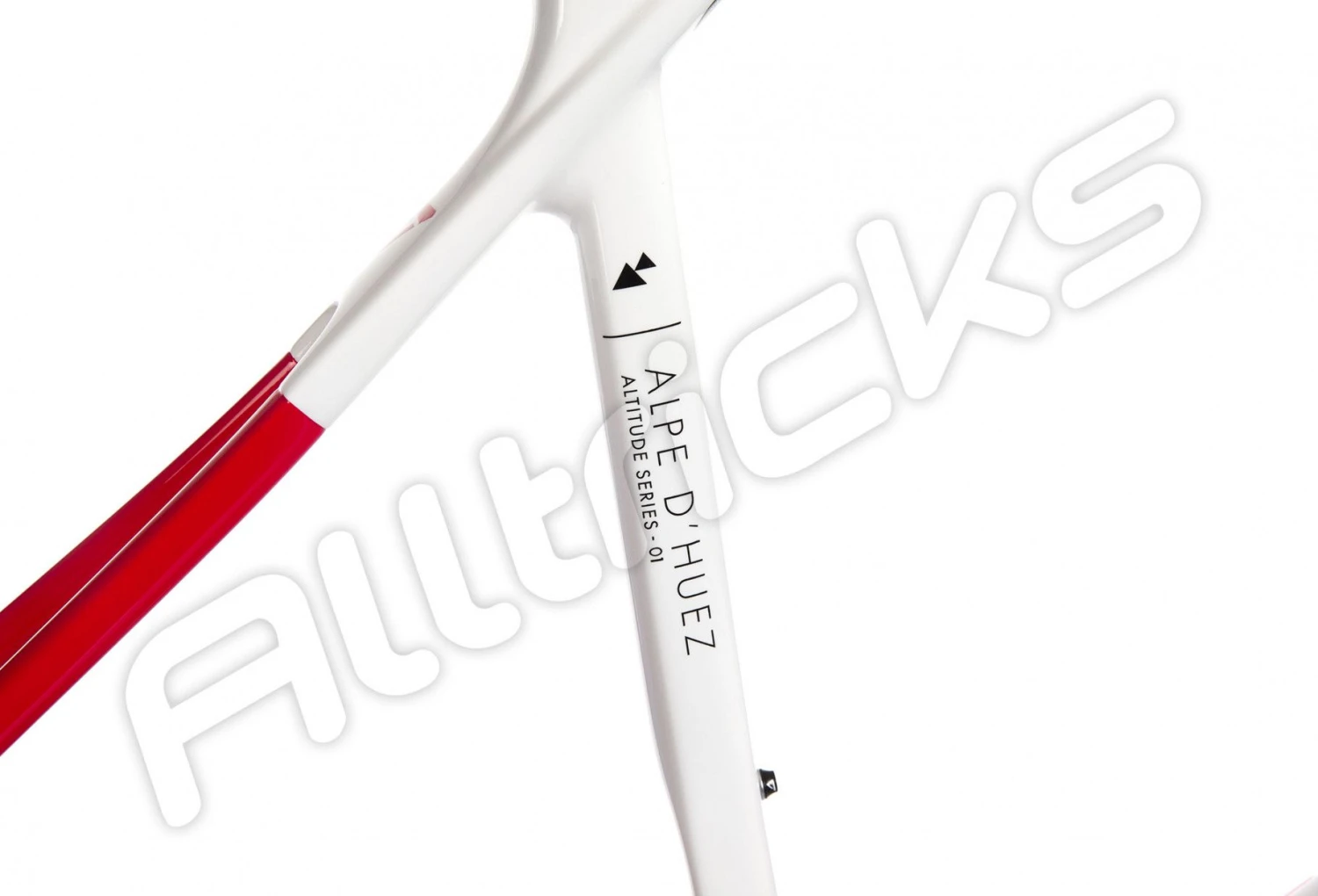

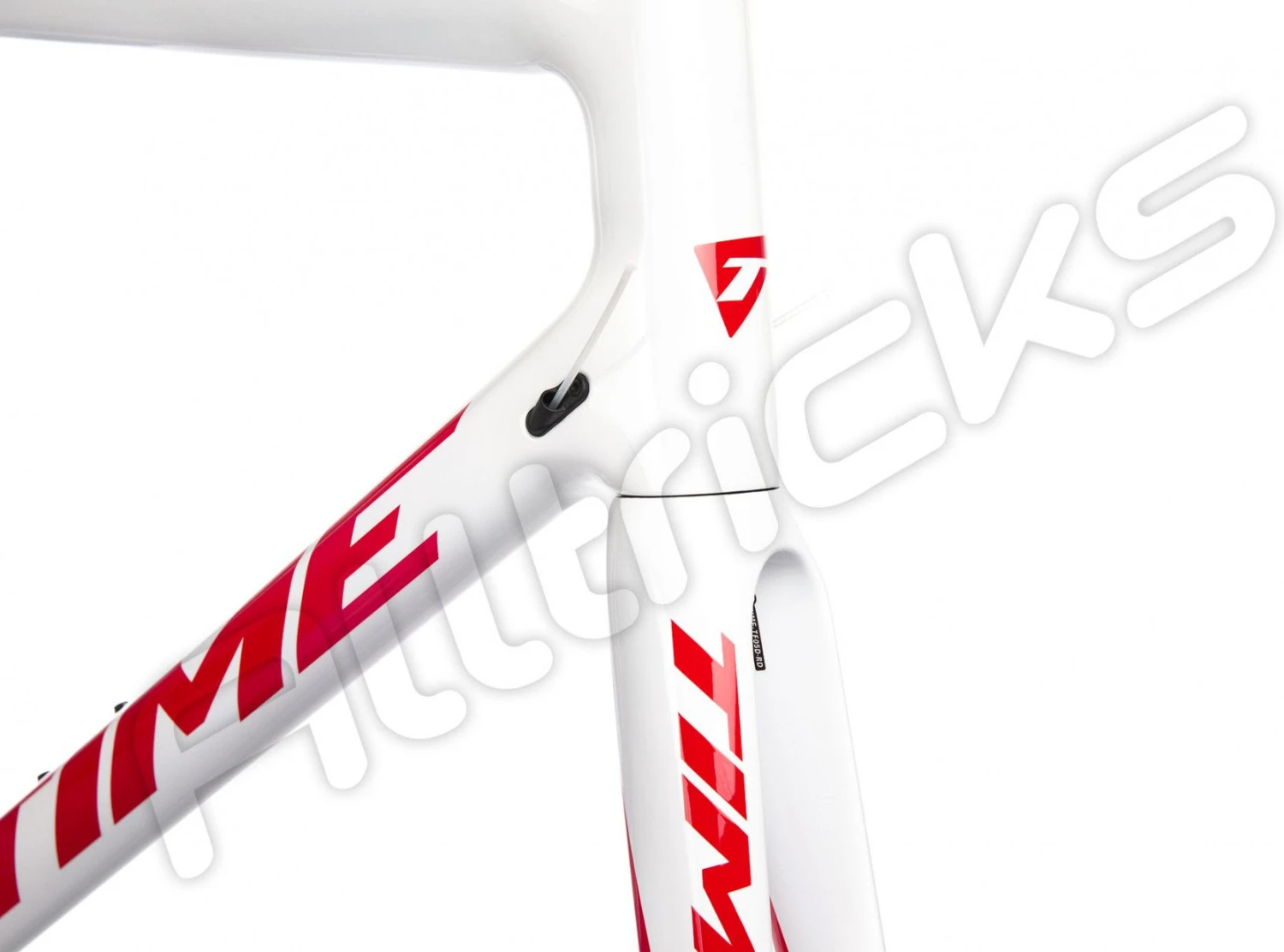

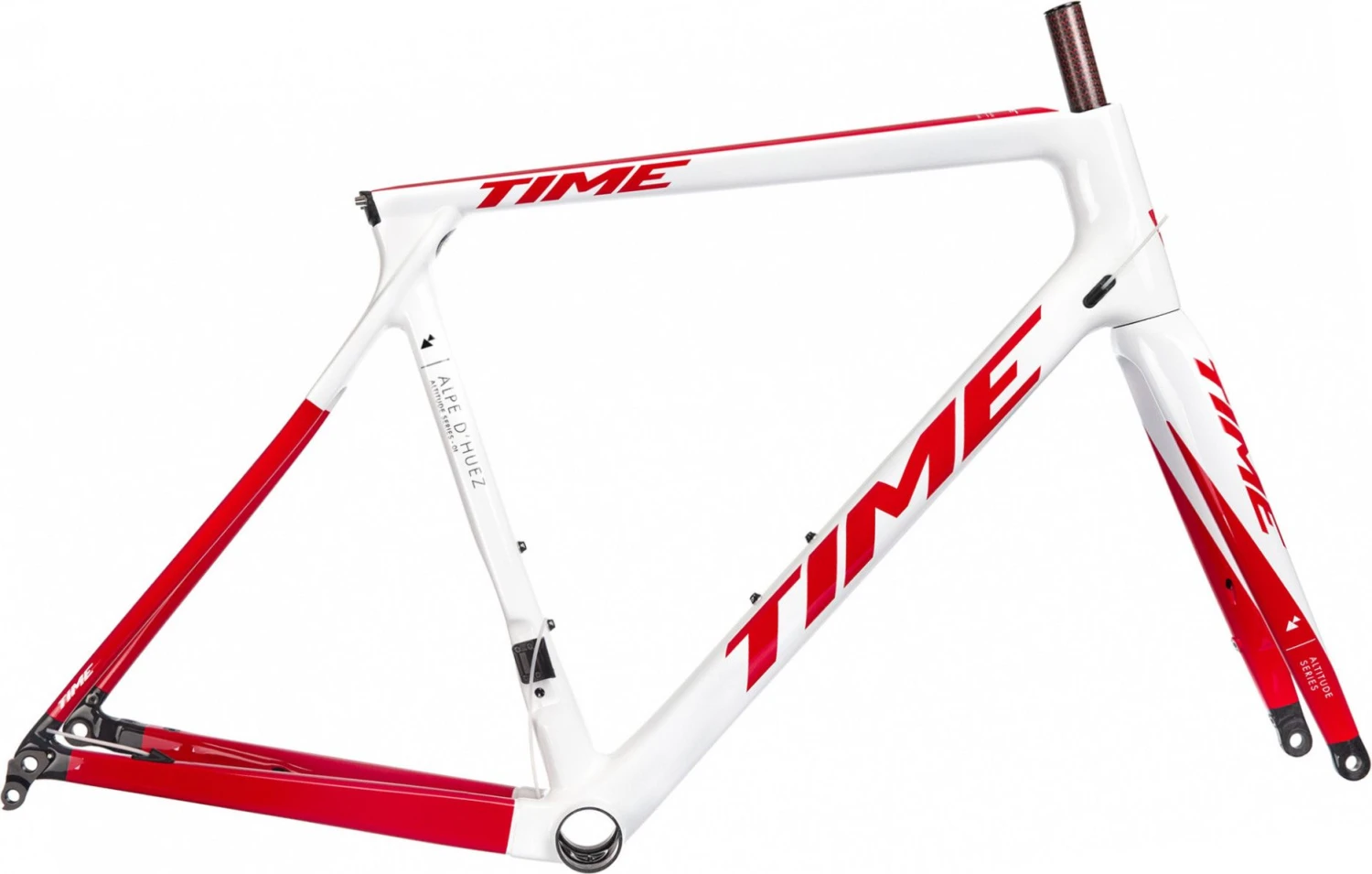

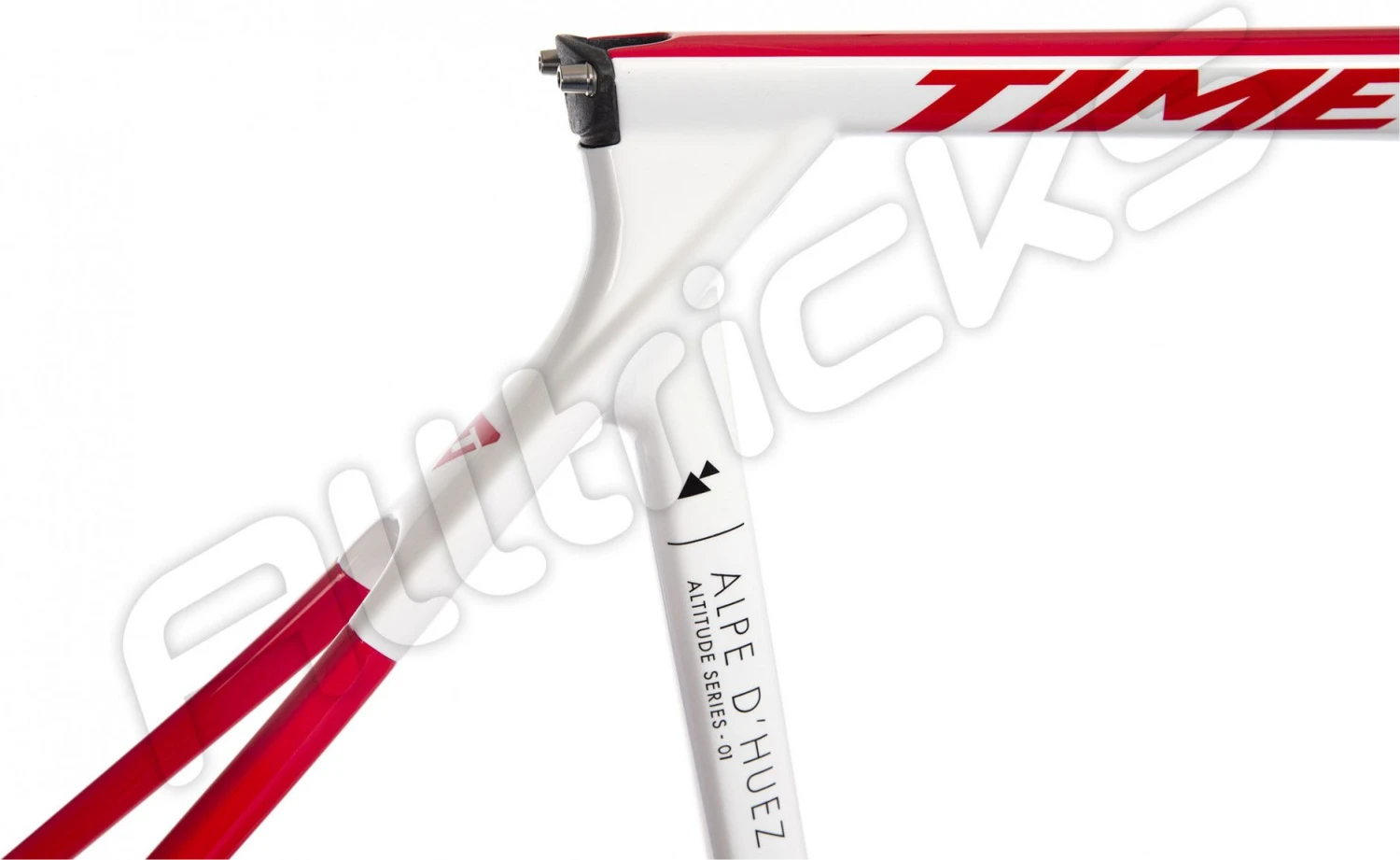

The Time Alpe d’Huez 01 is the lightest model that TIME has ever developed: -8.6% less than its predecessor, the Izon. To achieve this lightness, a completely new optimized structure has been developed. The finishing fabric has been removed from the tubes: diagonal, upper and on the seat tube. The carbon braid, developed according to the desired mechanical characteristics, and carefully positioned on the frame, remains visible on these parts. The seat post is also new, thinner and lighter.
To achieve these characteristics, we have worked on the lightness of the Alpe d’Huez bike, while improving the stiffness characteristics. This gives more than 25% on the stiffness / weight ratio , compared to its predecessor, the Izon. When you ride this bike then you feel nervousness, responsiveness and power when pedaling. To achieve these characteristics, we have worked on increasing the number of high modulus fibers, a stiffer BB386 bottom bracket, increased and optimized tube sections, and directlink technology which allows better energy transfer. The sloping geometry of the frame has been adapted for mountain landscapes with vertical drop.
The Alpe d’Huez is the ideal bike for this type of terrain: precise on descents and responsive on climbs.
The + product:
- Carbon frame braided carbon fibers, HM fibers (high modulus), Vectran fibers.
- Racingdrive geometry.

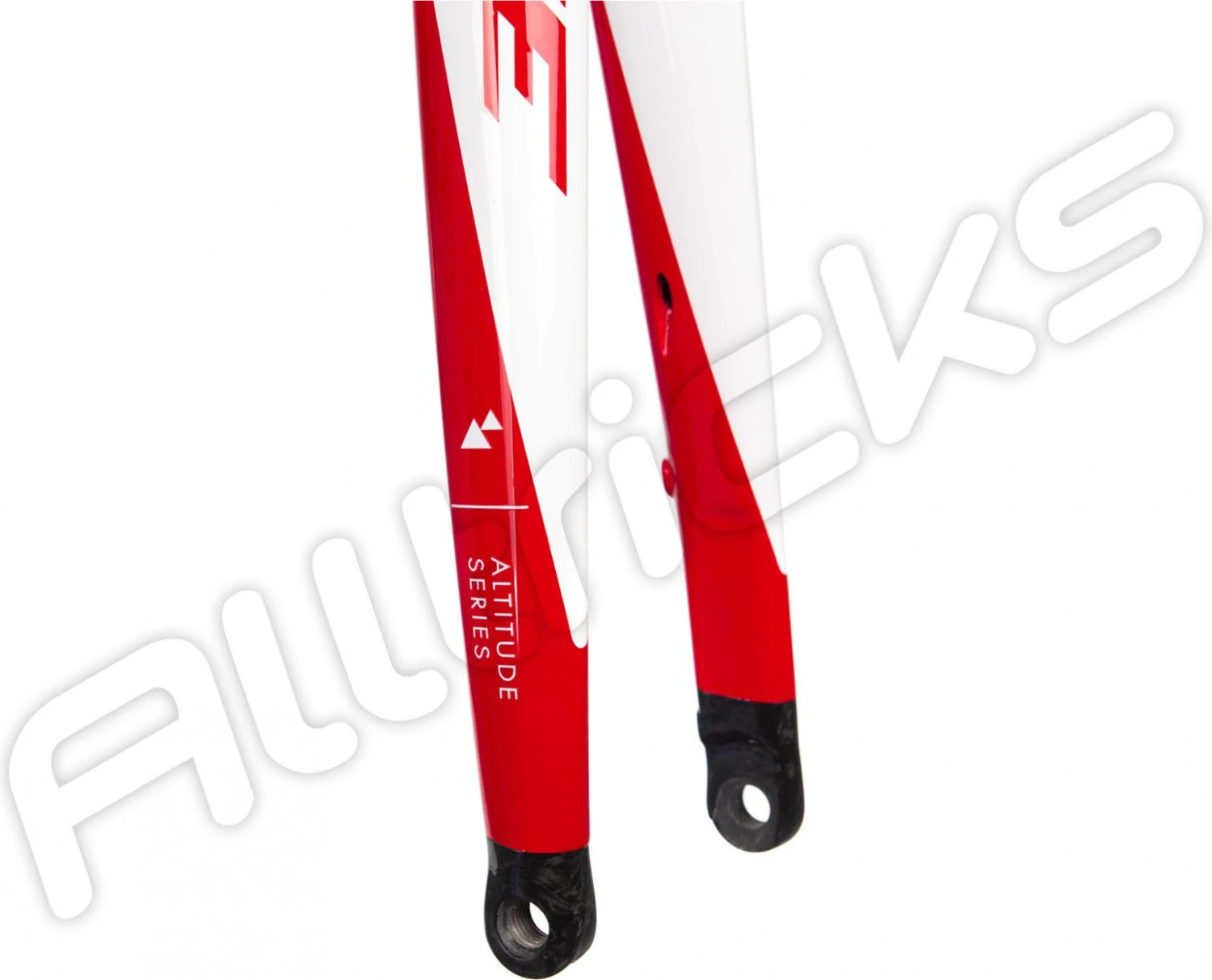

- Alpe d’Huez 01 Carbon RTM fork, CMT (Carbon Matrix Technology) inserts
- Flat-mount brake mount
- Compatible with mechanical / electrical group.
- Weight: 890 g (frame in size S).
Details:
| Frame | Carbon: Alpe d’Huez 01 carbon frame HM – Disc – 12x142mm / Flat-Mount |
| Fork | Carbon: Alpe d’Huez 01 Carbon RTM, CMT (Carbon Matrix Technology) inserts 12x100mm Flat-Mount |
| Bottom bracket | BB386 |
| Headset | TIME Quickset, integrated, the steering play adjustment is separate from the stem mounting |
| Weight | 890 g (size S) |
Geometries:

| Frame size | XXS | XS | S | M | L | XL |
| Seat tube (non-sloping / sloping) | 495-425 | 510-440 | 530-470 | 550-490 | 570-520 | 590-540 |
| Upper tube | 515 | 530 | 540 | 555 | 570 | 580 |
| Base length | 404 | 404 | 404 | 404 | 404 | 404 |
| Head tube | 122 | 133 | 149 | 166 | 186 | 204 |
| Steering angle | 71 ° | 71.5 ° | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Seat tube angle | 74.7 ° | 73.7 ° | 73 ° | 73 ° | 73 ° | 73 ° |
MORE INFORMATION
| Frame | Carbon: Alpe d’Huez 01 carbon frame HM – Disc – 12x142mm / Flat-Mount |
| Fork | Carbon: Alpe d’Huez 01 Carbon RTM, CMT (Carbon Matrix Technology) inserts 12x100mm Flat-Mount |
| Bottom bracket | BB386 |
| Headset | TIME Quickset, integrated, the steering play adjustment is separate from the stem mounting |
| Weight | 890 g (size S) |
| Frame size | XXS | XS | S | M | L | XL |
| Seat tube (non-sloping / sloping) | 495-425 | 510-440 | 530-470 | 550-490 | 570-520 | 590-540 |
| Upper tube | 515 | 530 | 540 | 555 | 570 | 580 |
| Base length | 404 | 404 | 404 | 404 | 404 | 404 |
| Head tube | 122 | 133 | 149 | 166 | 186 | 204 |
| Steering angle | 71 ° | 71.5 ° | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Seat tube angle | 74.7 ° | 73.7 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Rear axle | 12 x 142 mm |
| Bottom bracket mount | 386 Evo |
| Gender | Not Specified |
| Frame Caliper Mount | Flat Mount |
| Front derailleur mount | Braze On |
| Seat Clamp | Integrated |
| Diameter (mm) | Aero |
