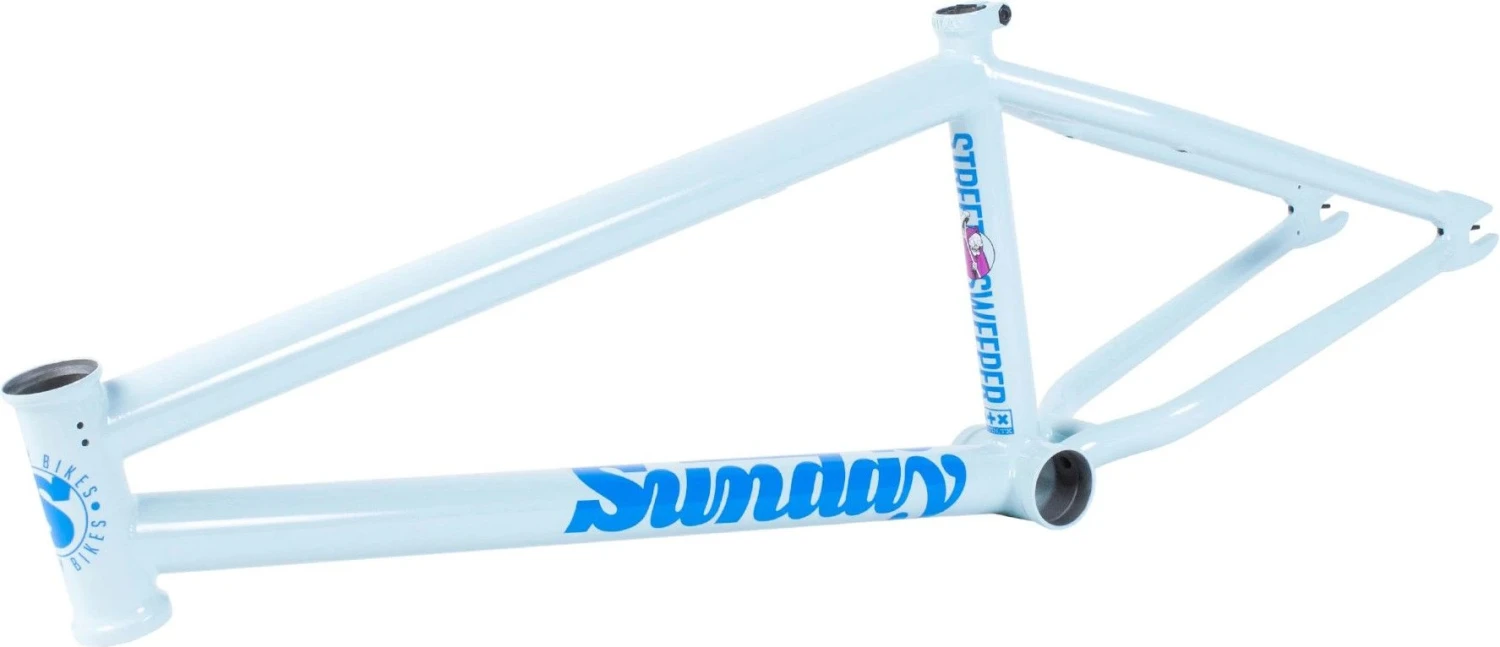

Sunday Street Sweeper BMX Frame Light Blue

The Street Sweeper is the evolution of Jake Seeley’s original Broadcaster frame. It’s designed with shorter seatstays, a steeper head tube angle, larger bottom bracket, and smaller hollow dropouts with integrated chain tensioners.
Built to be versatile, the Street Sweepe r features removable U-Brakes and gyro tabs. The front triangle of the frame uses traditional round Nightshift style top and bottom tubes with proven internal bellows.

Details:

• Frame 100% Chromoly 4130
• Nightshift style, double butted tubes.
• Integrated seat clamp
• Buttoned Seat Tube and Miter Cut Top Tube: A miter cut top tube creates a precise seam with the seat stays while welding. This greatly increases the strength on frames that use a “sandwich” top tube at this critical junction.
• Tapered Chains and Seatstays: The chain and seat stay tapered to give the frame a clean, refined look while providing strength. They are both angled on the inside for better chain clearance and weight savings.
• Hollow Dropouts with Chain Tensioners: The 8mm wide hollow dropouts are as light as a solid 5mm dropout, but more than twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.
• Removable brake: removable brake brackets and cable guides / stops.

Geometries:

• Top Tube Lengths: 20.5 “, 20.75” or 21 “
• Head tube angle: 75.25 °
• Seat tube angle: 71 °
• Base Length: 12.70-13 “
• Bottom Bracket Height: 11.7 “
• Standover: 8.8 “
• Tire Clearance: 2.4 “
• Head tube length: 4.7 “
