Ritchey handlebars are constantly evolving to meet the demand of riders who wish to practice on a wide variety of terrains.
The Ergomax handlebar is ideal for gravel thanks to its angle of 12 at the level of the lower part which allows greater clearance of the forearms for a more stable position when cornering and dancing, and it is perfect on a Road bike for long distances thanks to its ergonomically shaped upper part which gives it a lot of comfort.
Ovalis and 10mm reading on the top, with an angle of 4 towards the rear, it allows a more upright and more natural position and less support on the hands and wrists.
The hanger is compact in shape.

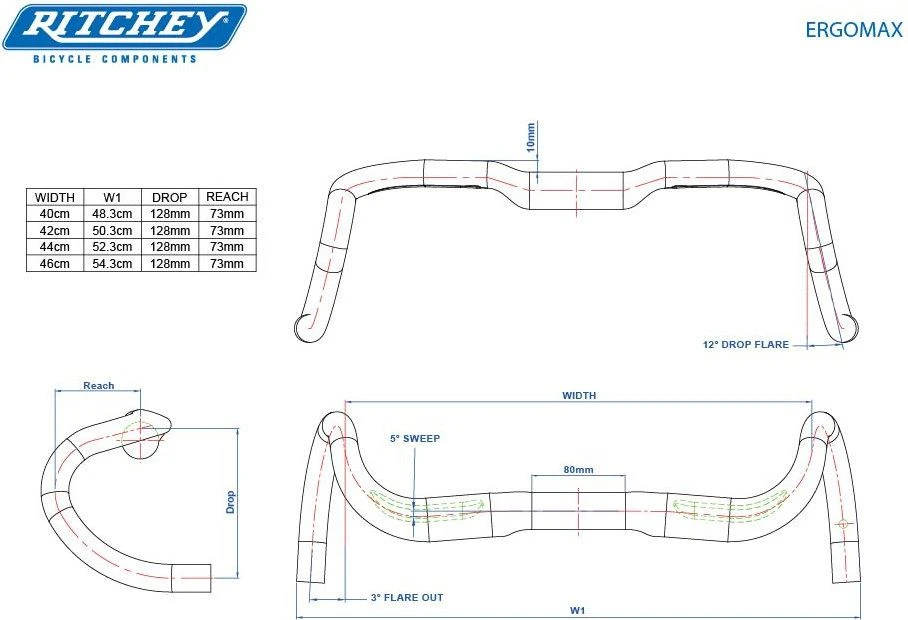

Details
- Material: Alu 6061.
- Diameter: Oversize 31.8mm.
- Di2 compatible.
- Cable passage for Di2.
- Height: 128mm.
- Depth: 73mm.
- 10mm reading at hand positioning zones.
- Sweep (angle towards the rear upper part): 4.
- Drop flare (outside angle at the bottom): 12.
- Flare out: 3.
- Finish: Matt Black.
- Installation advised with the Ritchey Dynamometer.
- The Ergomax shape is incompatible with the Ritchey C260 stem.
- Verified weight
MORE INFORMATION
| Gender | Not Specified |
| Material | Aluminium |
| Handlebar Diameter | 31.8 |
| Cable Routing | Internal |
| Reach | 73 |
| Drop | 128 |
| Largeur (mm) | 420 |
