Note : Please note that specifications are subject to change without notice, based on component availability and other factors.

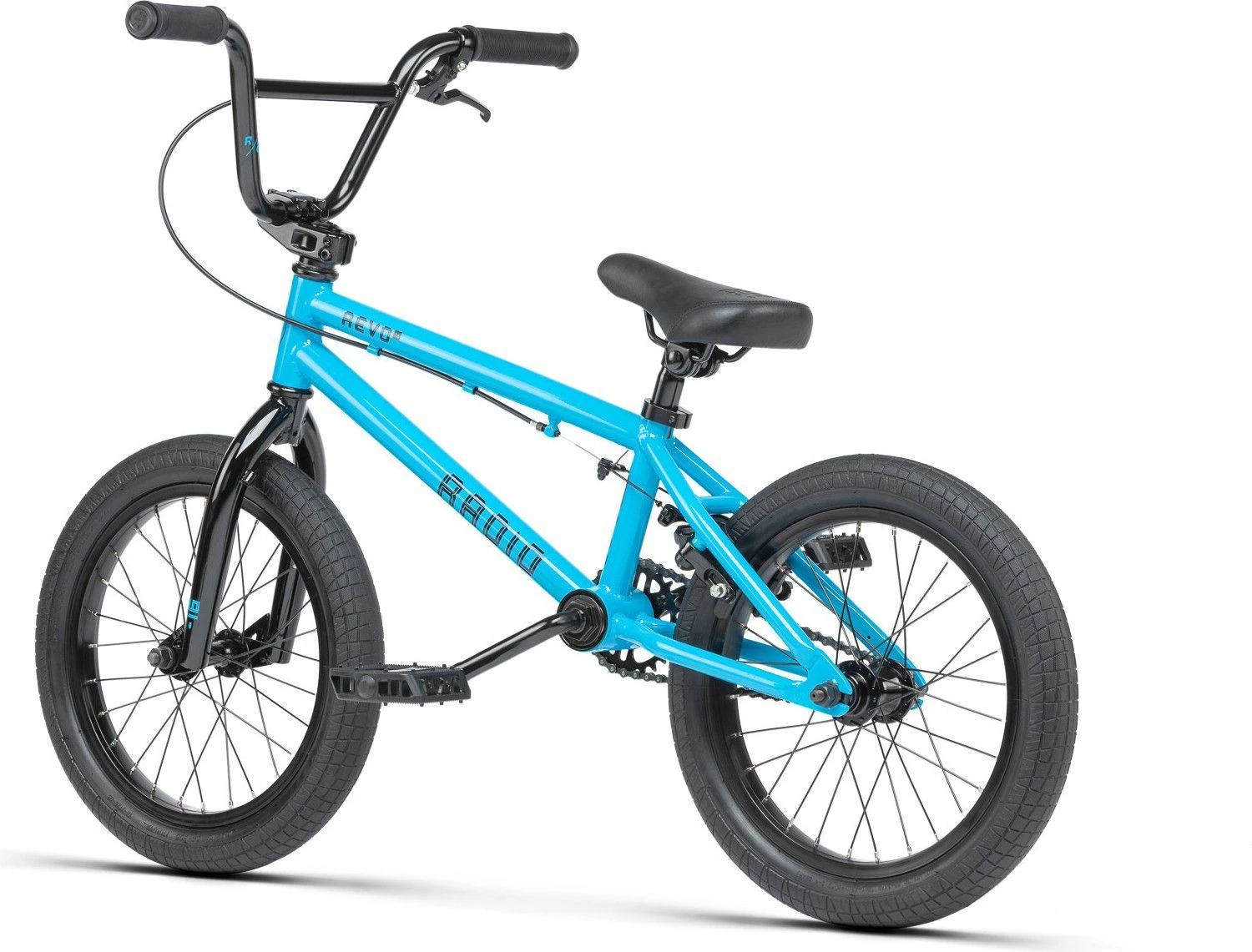

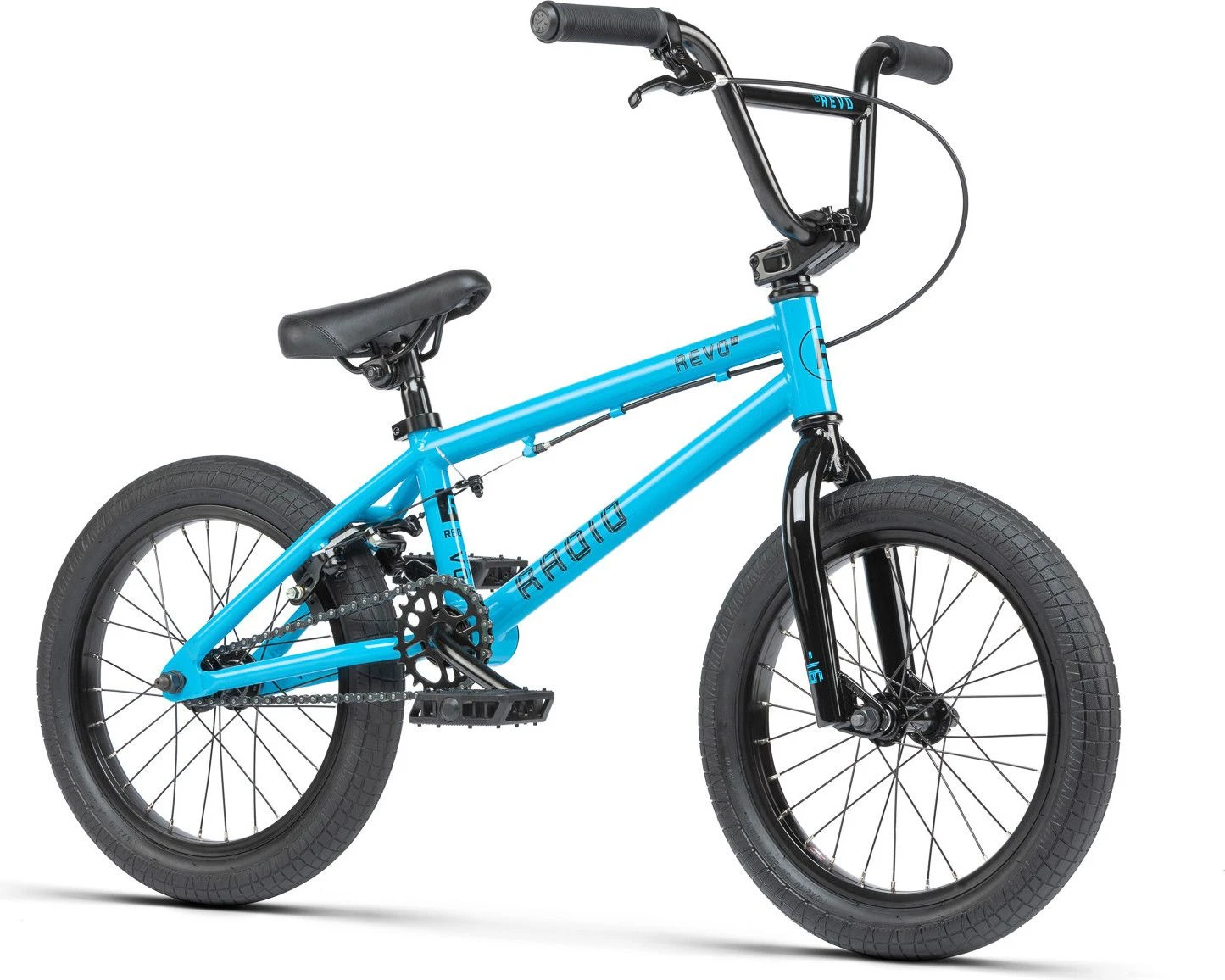

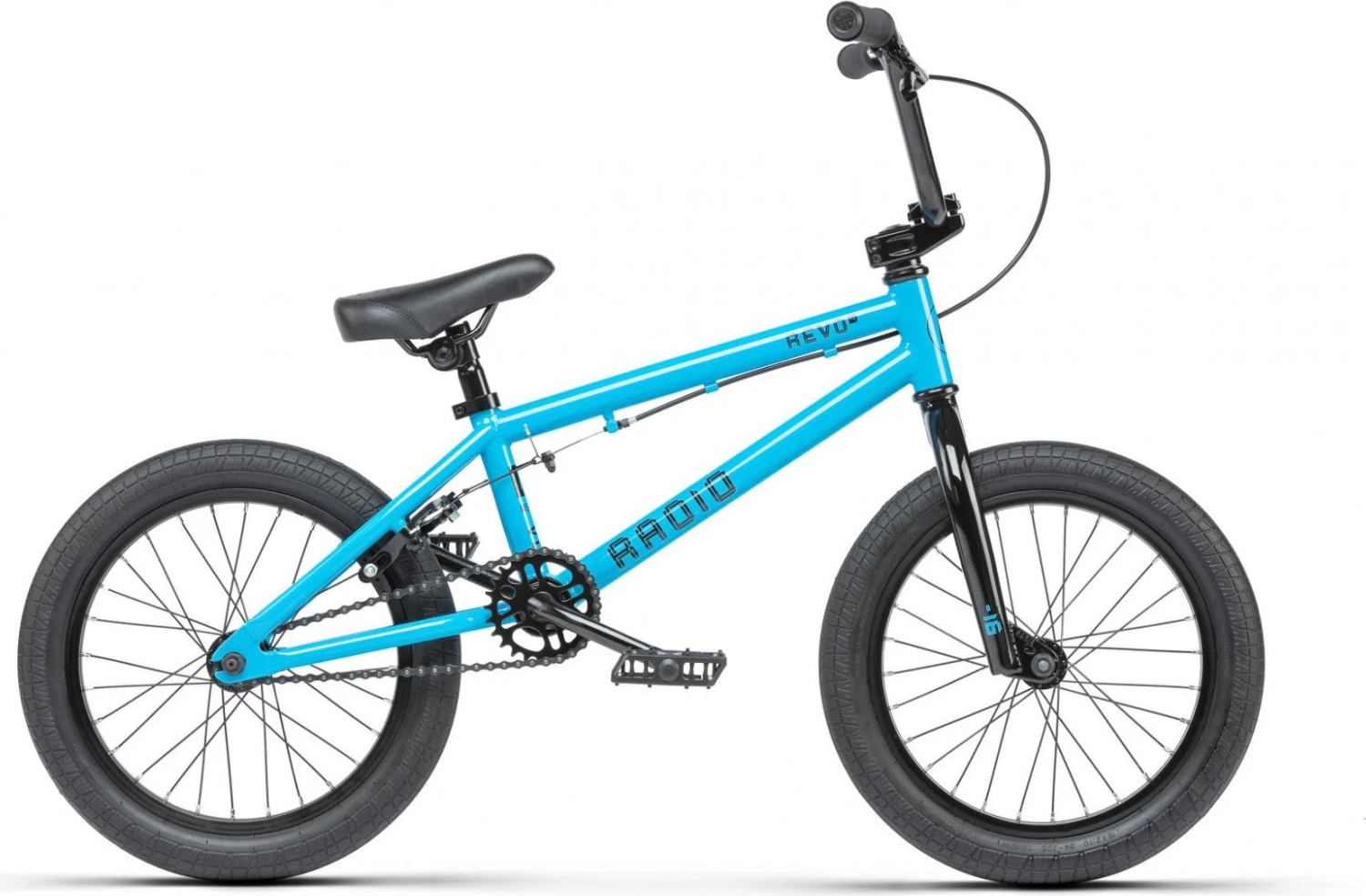

The BMX Freestyle Radio Revo 16 is designed with a steel fork frame. It allows you to get your first sensations in BMX. Everything about this BMX has been chosen to ensure that this bike has the best possible equipment to make learning BMX as enjoyable as possible. The Revo 16 gives young riders the opportunity to have a faster and more responsive bike.
The + product:
- Frame and fork in 1020 hi-ten steel.
- U-Brake Radio AM- U rear brakes
- Radio Rookie steel crankset.
Details:
| Frame | Steel: RADIO REVO 16 frame, full 1020 hi-ten |
| Fork | Steel: RADIO ROOKIE 16 fork, hi-ten |
| Pinion | RADIO ROOKIE sprocket, steel, 25 teeth |
| Chain | KMC S1 |
| Crankset | RADIO ROOKIE 1pc crank, forged, crmo, 127mm |
| Bottom bracket | USA size, loose ball |
| Brake levers | RADIO JUNIOR 16 brake lever, alloy |
| Brakes | RADIO AM caliper brake, alloy, front / RADIO ?AM-U? u-brake, alloy, rear |
| Wheels | Rims: SALT AM rim, straight single wall, 28h / Hubs: (F) RADIO Rookie steel hub, lb, 28h / (R): RADIO?ROOKIE cassette hub, steel, lb, 9T, 3/8″ axle, 28h |
| Tires | RADIO ROOKIE tires, 16? X2.1? |
| Handlebar | RADIO REVO 16 bar, hi-ten, Rise 6.8 ?, Width 23.5 ?, Backsweep 10 °, Upsweep 3 ° |
| Grips | RADIO JUNIOR grips, flangeless, 130mm |
| Stem | SALT JUNIOR topload stem, 40mm reach |
| Headset | FSA loose ball |
| Saddle | RADIO Century slim combo seat |
| Pedals | RADIO AM alloy seatpos |
| Total weight | 9.95 kg |
| Colors | Black |
Geometries:

| Wheel size (inch) | 16 |
| Seat tube | — |
| Upper tube | 16 “ |
| Base length | 11.2 “ |
| Steering angle (°) | 75 |
| Seat tube angle (°) | 71.5 |
| Bottom bracket height | 9.75 “ |
| Standover | 6.6 “ |
MORE INFORMATION
| Frame | Steel: RADIO REVO 16 frame, full 1020 hi-ten |
| Fork | Steel: RADIO ROOKIE 16 fork, hi-ten |
| Pinion | RADIO ROOKIE sprocket, steel, 25 teeth |
| Chain | KMC S1 |
| Crankset | RADIO ROOKIE 1pc crank, forged, crmo, 127mm |
| Bottom bracket | USA size, loose ball |
| Brake levers | RADIO JUNIOR 16 brake lever, alloy |
| Brakes | RADIO AM caliper brake, alloy, front / RADIO ?AM-U? u-brake, alloy, rear |
| Wheels | Rims: SALT AM rim, straight single wall, 28h / Hubs: (F) RADIO Rookie steel hub, lb, 28h / (R): RADIO?ROOKIE cassette hub, steel, lb, 9T, 3/8″ axle, 28h |
| Tires | RADIO ROOKIE tires, 16? X2.1? |
| Handlebar | RADIO REVO 16 bar, hi-ten, Rise 6.8 ?, Width 23.5 ?, Backsweep 10 °, Upsweep 3 ° |
| Grips | RADIO JUNIOR grips, flangeless, 130mm |
| Stem | SALT JUNIOR topload stem, 40mm reach |
| Headset | FSA loose ball |
| Saddle | RADIO Century slim combo seat |
| Pedals | RADIO AM alloy seatpos |
| Total weight | 9.95 kg |
| Colors | Black |
| Wheel size (inch) | 16 |
| Seat tube | — |
| Upper tube | 16 “ |
| Base length | 11.2 “ |
| Steering angle (°) | 75 |
| Seat tube angle (°) | 71.5 |
| Bottom bracket height | 9.75 “ |
| Standover | 6.6 “ |
| Gender | Not Specified |
| collection | 2021 |
