Note : Please note that specifications are subject to change without notice, based on component availability and other factors.

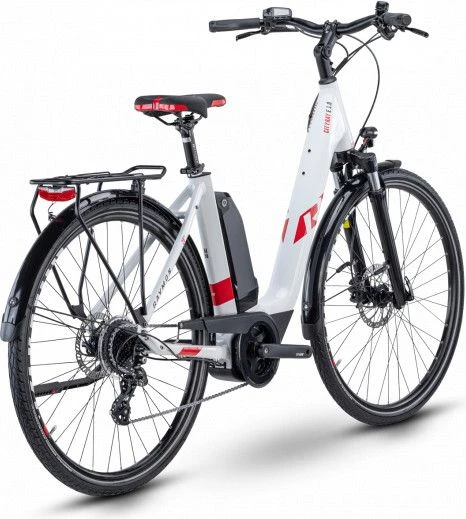

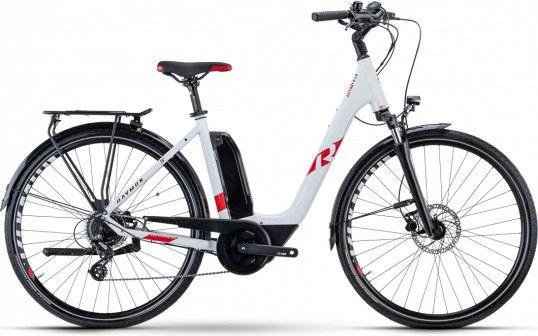

Whether you are looking for an electric city bike for your daily commute or just to cross town on your weekend rides, the Raymon CityRay E 1.0 eBike R is an ideal choice. With a slim silhouette and a particularly light aluminum frame, it is easy to handle in city traffic. Its easy-to-step frame and numerous standard accessories make it the ideal bike to accompany you on your adventures in the urban jungle.
The + product:
- 6061 aluminum frame with battery on the seat tube.
- Shimano Altus 1×8 speed drivetrain.
- Tektro HD-T275 hydraulic disc brakes.
- Yamaha engine with a 500 Wh battery.
Details:
| Frame | Aluminum: Alloy 6061, City, External Battery, 9x135mm |
| Fork | SR Suntour NEX E25 DS, 50mm, Tapered |
| Motor | Yamaha PW-CE, 250W, 50Nm |
| Battery | Yamaha EX500, 36V, 14Ah |
| Display | Yamaha Display A, LCD-Display |
| Shifters | Shimano Altus, SL-M315, Rapidfire Plus, 1×8 speed |
| Rear derailleur | Shimano Altus, RD-M310, 8-speed |
| Cassette | Shimano CS-HG31, 11-34 teeth |
| Chain | KMC X8 |
| Crankset | R Raymon, Alloy, 170mm / R Raymon, Direct Mount, 38 teeth |
| Brakes | Tektro HD-T275, hydr. Disc |
| Tires | Impac RoadPac, Puncture ProTection, Reflex, 28×1.85 |
| Handlebar | R Raymon 31.8, 640mm, Sweep: 35 °, Rise: 25mm |
| Grips | R Raymon Ergo, Lock-On |
| Stem | R Raymon 31.8, 85mm, adjustable |
| Pedals | R Raymon, Alloy |
| Saddle | R Raymon Ergo |
| Seatpost | R Raymon 30.9, Alloy, 350mm |
| Accessories | Mudguard: Eurofender Tempo 58 / Crutch: Ursus MOOI KSA18, adjustable / Front light: Axa Compactline, 20 Lux / Rear light: Axa Blueline E / Luggage rack: R Raymon, spring clamp |
| Weight | — |
| Colors | White Red |
MORE INFORMATION
| Frame | Aluminum: Alloy 6061, City, External Battery, 9x135mm |
| Fork | SR Suntour NEX E25 DS, 50mm, Tapered |
| Motor | Yamaha PW-CE, 250W, 50Nm |
| Battery | Yamaha EX500, 36V, 14Ah |
| Display | Yamaha Display A, LCD-Display |
| Shifters | Shimano Altus, SL-M315, Rapidfire Plus, 1×8 speed |
| Rear derailleur | Shimano Altus, RD-M310, 8-speed |
| Cassette | Shimano CS-HG31, 11-34 teeth |
| Chain | KMC X8 |
| Crankset | R Raymon, Alloy, 170mm / R Raymon, Direct Mount, 38 teeth |
| Brakes | Tektro HD-T275, hydr. Disc |
| Tires | Impac RoadPac, Puncture ProTection, Reflex, 28×1.85 |
| Handlebar | R Raymon 31.8, 640mm, Sweep: 35 °, Rise: 25mm |
| Grips | R Raymon Ergo, Lock-On |
| Stem | R Raymon 31.8, 85mm, adjustable |
| Pedals | R Raymon, Alloy |
| Saddle | R Raymon Ergo |
| Seatpost | R Raymon 30.9, Alloy, 350mm |
| Accessories | Mudguard: Eurofender Tempo 58 / Crutch: Ursus MOOI KSA18, adjustable / Front light: Axa Compactline, 20 Lux / Rear light: Axa Blueline E / Luggage rack: R Raymon, spring clamp |
| Weight | — |
| Colors | White Red |
| Gender |
Women Men |
| Groupe | Shimano Altus 8S |
| collection | Fins de Séries |
