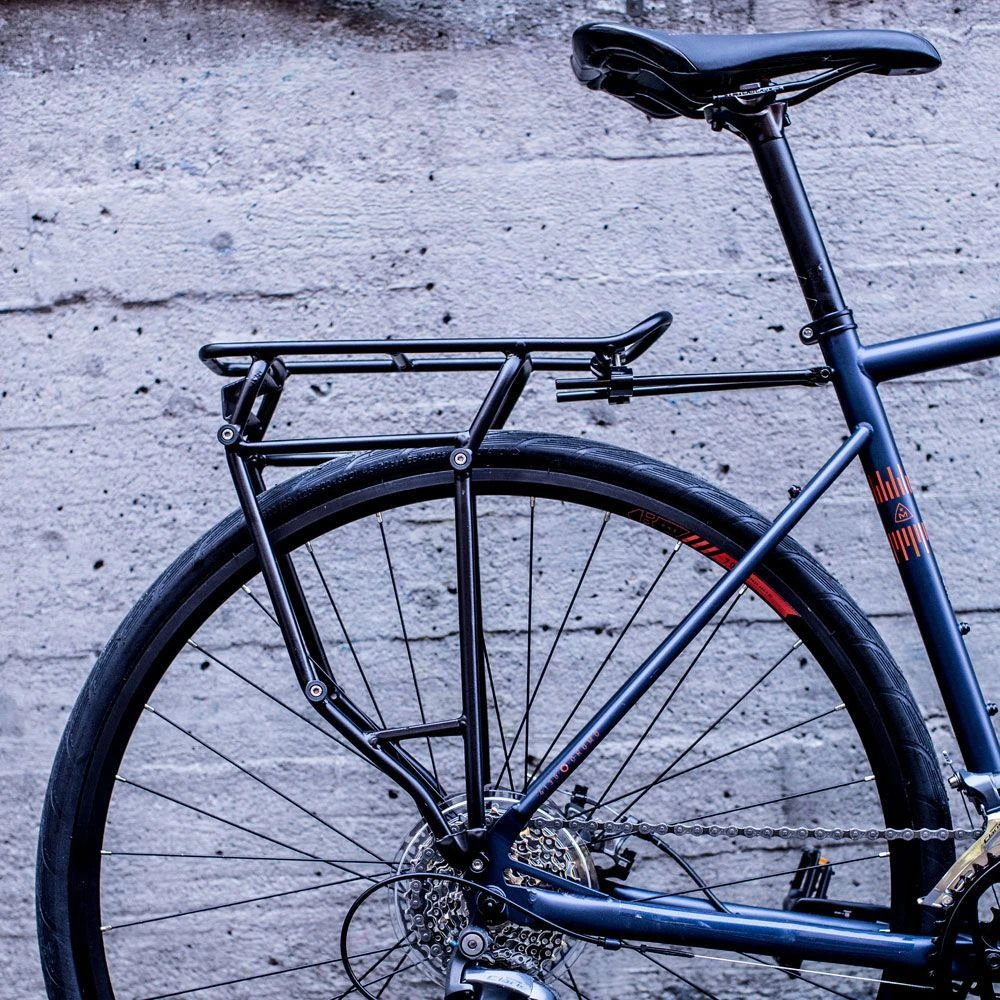

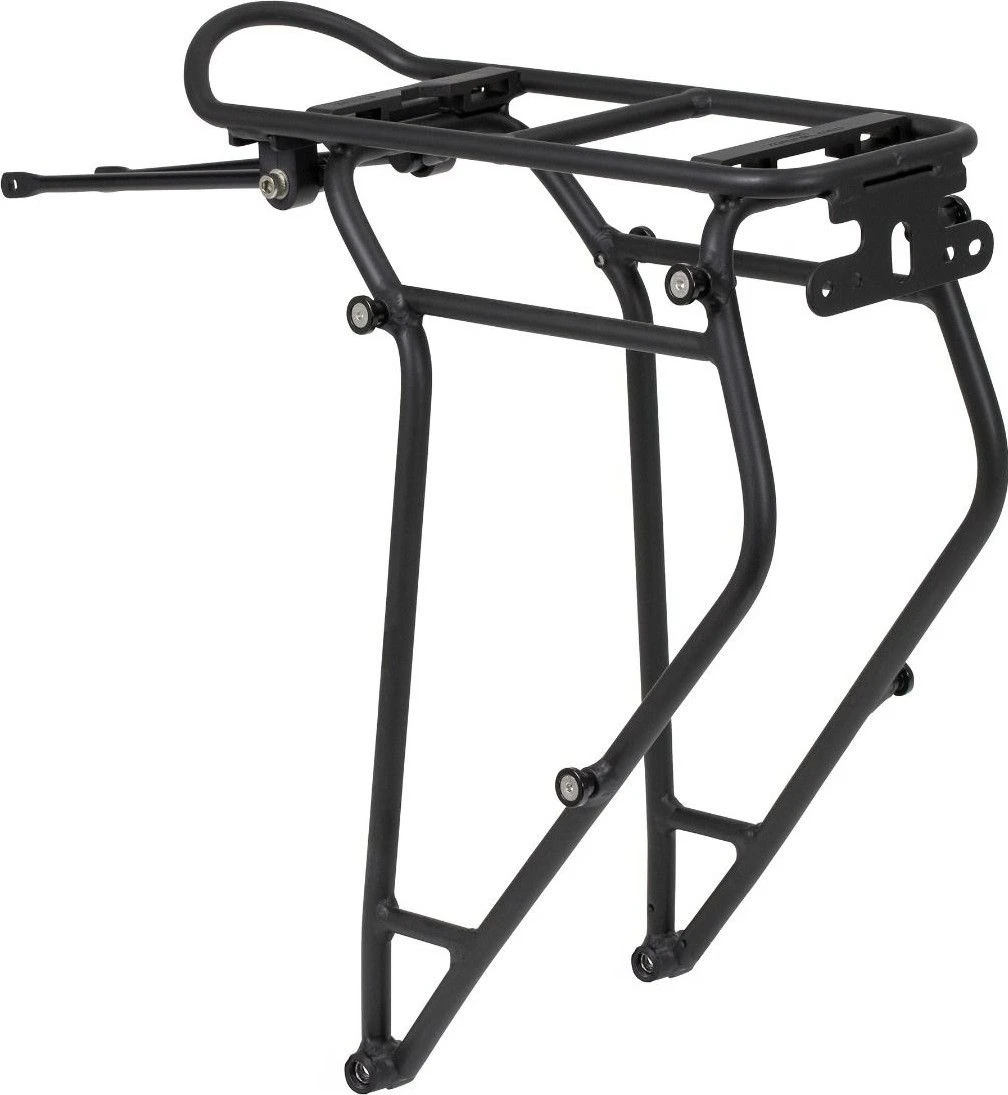

The ultimate bike rack! The Ortlieb Rack Three offers you the right solution, whether you’re on your way to work, the grocery store or around the world. One unique advantage of this all-purpose bike rack is its compatibility with all Ortlieb attachment systems. Outfitted with convenient mounting elements for the QL3 and QL3.1 systems, the Rack Three allows you to attach all Ortlieb bags directly to your bike without any other modifications. If you want to use the Rack Three exclusively for your QL2.1/2/1 bags, you can easily remove the attachment elements for the QL3.1/QL3 and thereby create even more space for your panniers.
The Rack Three’s double-rail design allows you to attach all bike bags with a QL2.1, QL2 or QL1 system to a top level or a lower level. Selecting the lower level gives you the option of simultaneously attaching a bike basket or a Trunk-Bag to the top of your bike rack and expanding your overall stowage space. RackThree is compatible with MIK adapter plate and is suitable for bicycles with wheel sizes of 26” and 28”. The maximum load is 30 kg.
Main features:
- City and touring aluminium rack with two mounting levels.
- For wheel size 26″/28″ (1 size).
- Width of support surface 120 mm.
- Compatible with all ORTLIEB mounting elements (Quick-Lock1, 2, 2.1, 3 or 3.1 system).
- With three integrated QL3/QL3.1 mounting elements on each side.
- Further mounting components are not required for QL3/QL3.1 bags.
- Suitable for direct mounting of QL3/QL3.1 products (e.g Back-Roller Free, Back-Roller Urban, Single-Bag, Office-Bag, Downtown Two, Vario, Commuter-Bag Two Urban).

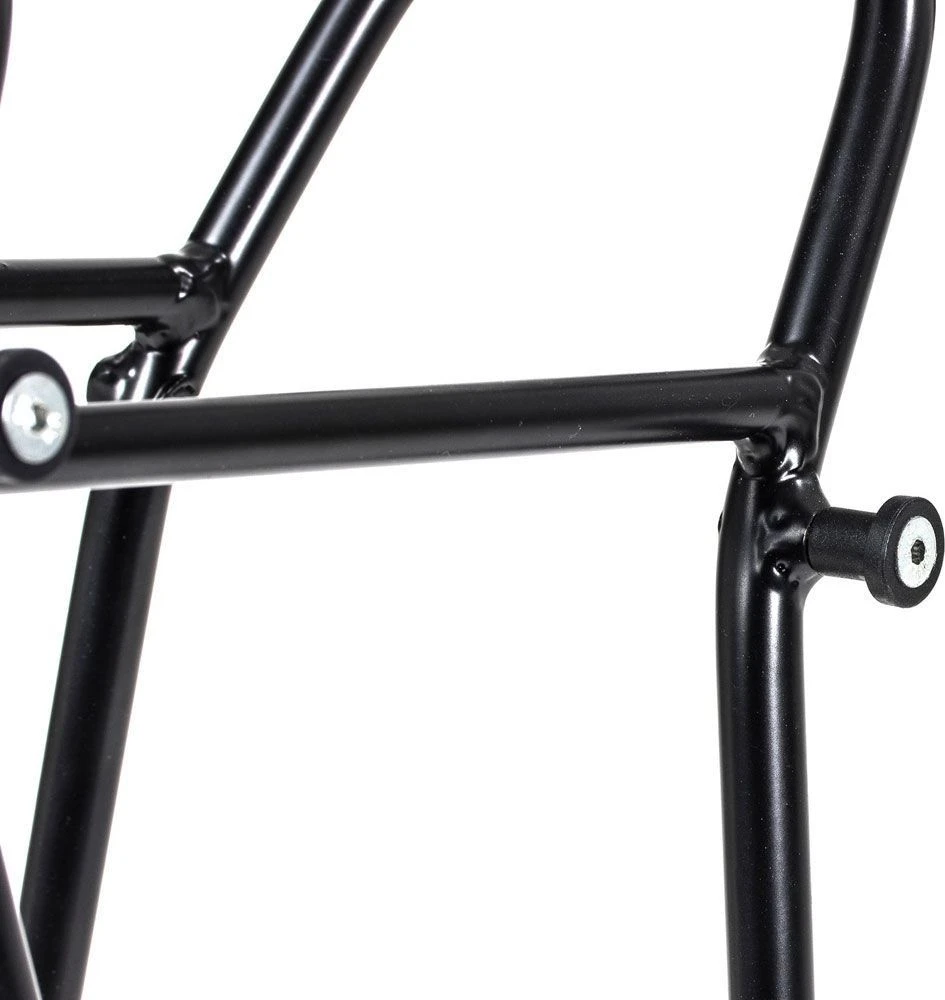

- QL3/QL3.1 lock heads can be easily removed for fixing panniers with QL1, QL2 or QL2.1 system; dummy plugs for borings included.
- Second mounting level for simultaneous use of pannies on sides and basket or Trunk-Bag on top.

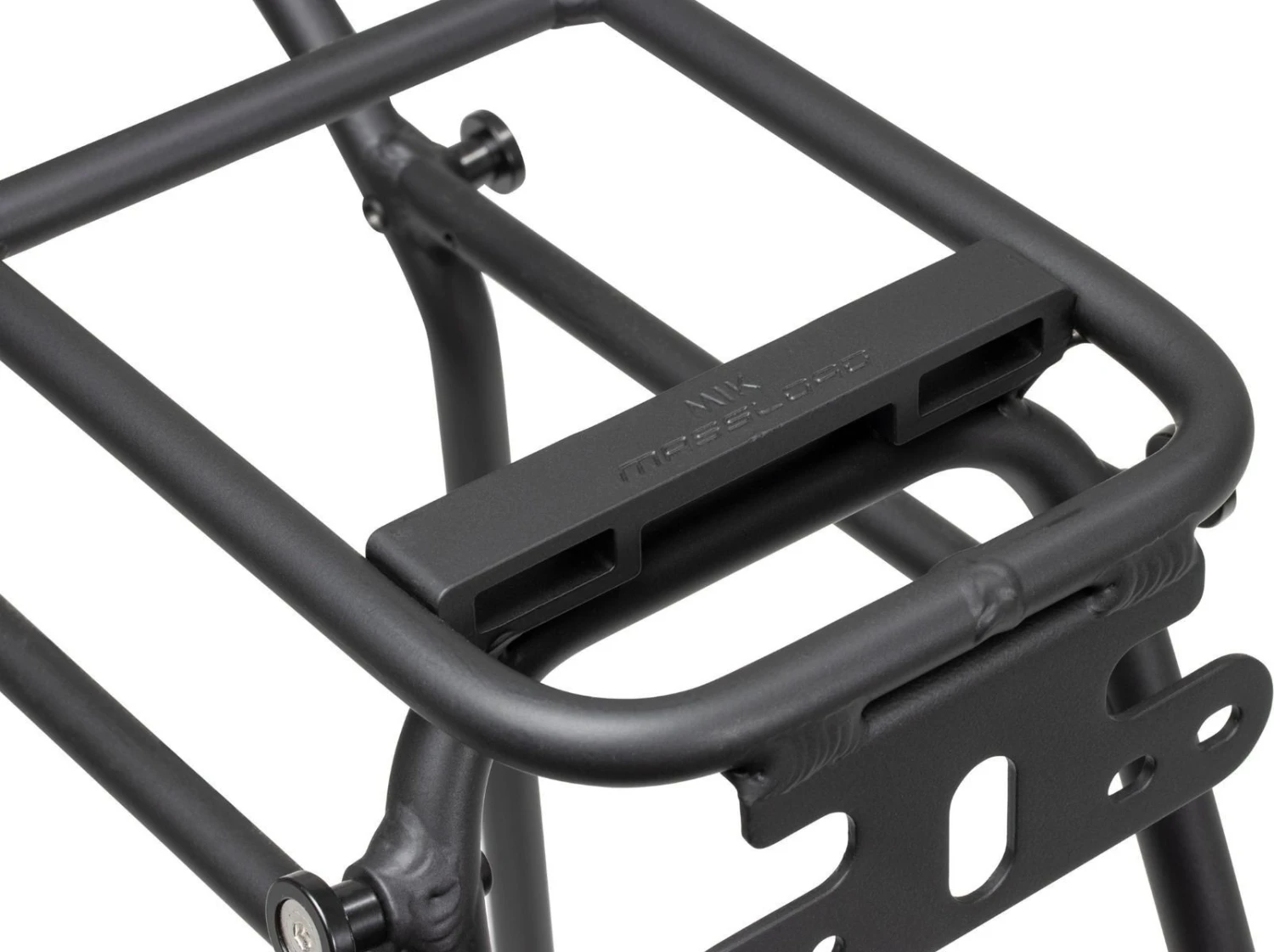

- Compatible with MIK adapter plate.
- Mounting for optional rear light (not included).
Features:
- Material: aluminium.
- Wheel size: 26/28″.
- Tube diameter (horizontal/vertical): 10/12 mm.
- Outer width support surface: 120 mm.
- Max. mounting width: 160 mm.
- Weight: 840 g.
- Maximum capacity: 30 kg.
- Attention: rack not suitable for mounting and using child seats; not compatible with disc brakes!
