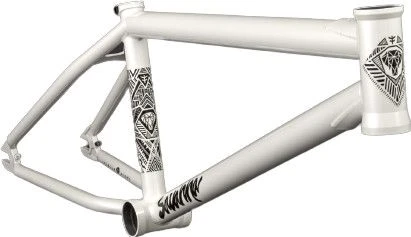

Courage Adams’ Savanna frame retains its original geometry, but uses new tube specifications that reduce overall frame weight without sacrificing strength.

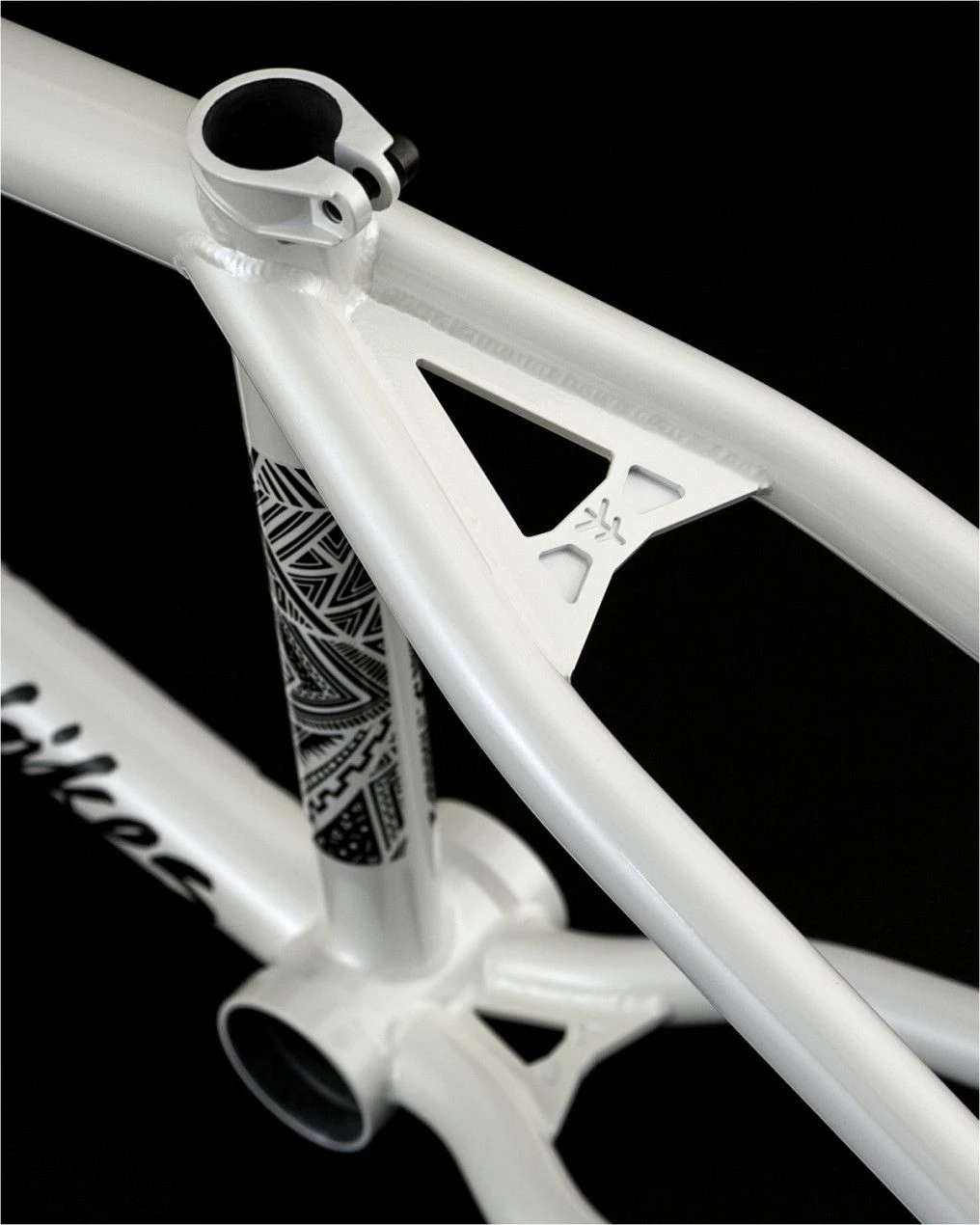

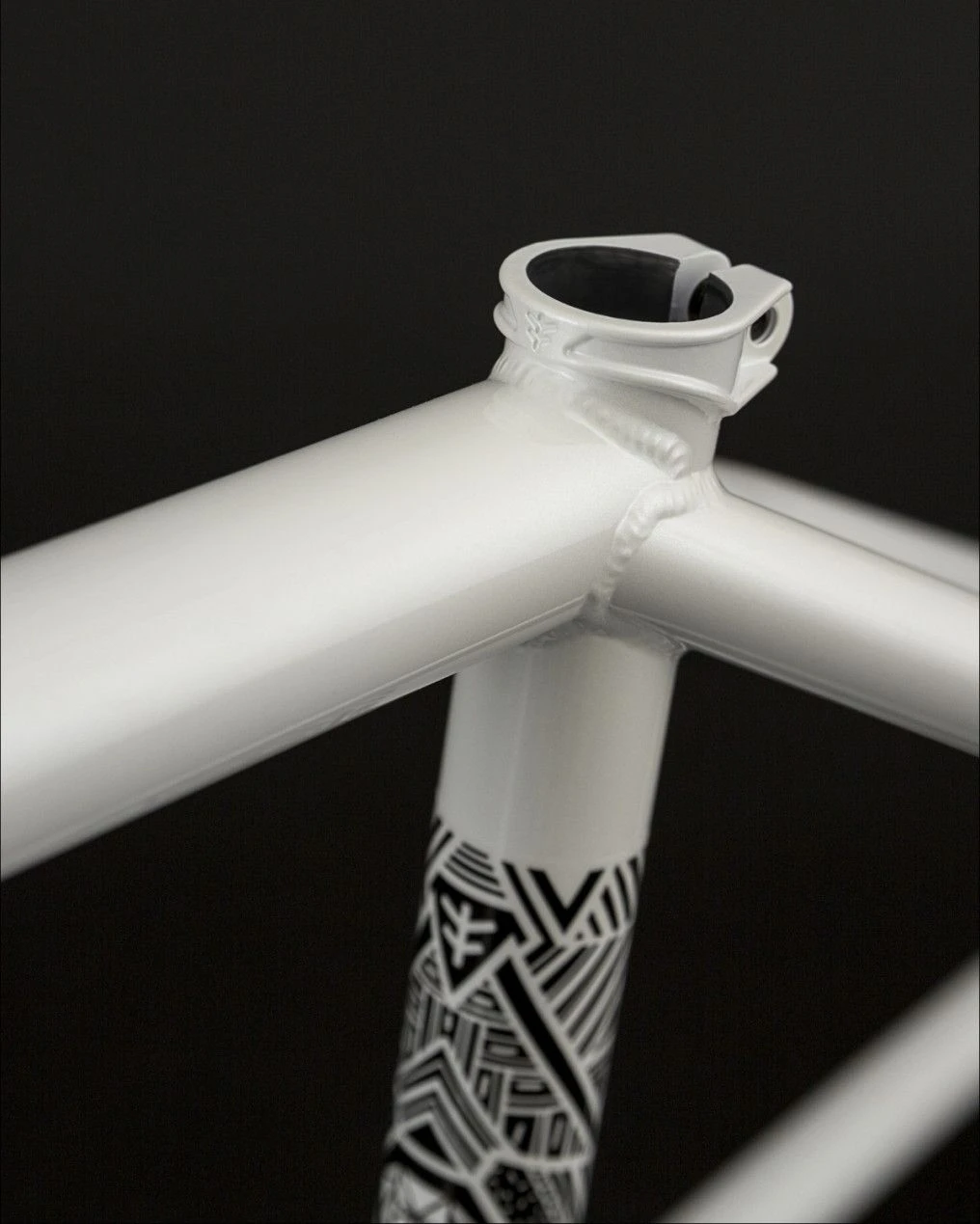

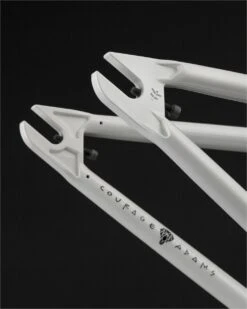

The frame features internal and external reinforcements, multi-stop and tapered tubes, an Investment Cast seatpost clamp with the Horizontal Cut system and Investment Cast dropouts with integrated chain tensioners. It is without brake, so there are no supports or guides.
The + product:
- Made from 100% CroMo steel tubing
- Weight: 2.4 kg in 21 “
- Frame without brake system
Geometries:
| Frame size | 20.6 “ | 21 “ |
| Wheel Size (inch) | 20 | 20 |
| Base length (inches) | 13 | 13 |
| Head tube height (inch) | 4.45 | 4.45 |
| Steering angle (°) | 75.5 | 75.5 |
| Seat tube angle (°) | 71 | 71 |
| Bottom bracket height (inch) | 11.75 | 11.75 |
| Standover (inch) | 9.25 | 9.25 |
MORE INFORMATION
| Gender | Not Specified |
| Frame Caliper Mount | None |
