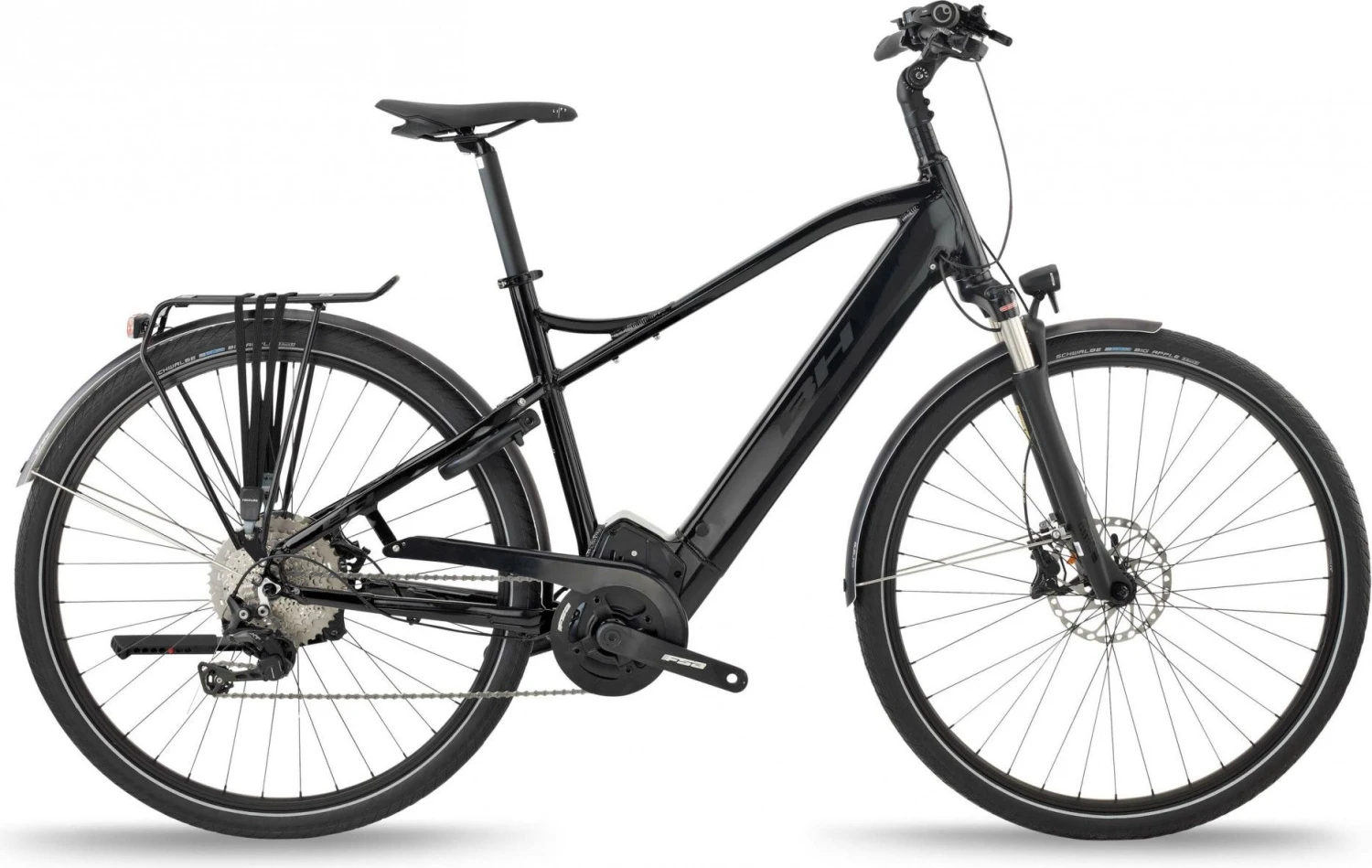

The BH Atoms Cross Pro-S is the electric bike with an integrated battery, the geometry of the classic bikes and a long range.
The relative position of the lightest elements of the system (motor and battery) allows for a low center of gravity, guaranteeing a responsive and stable bike without having to sacrifice its geometry.
 The Full Suspension range incorporates the Split Pivot system which allows to act independently on the three forces exerted on a bike: pedaling, braking and suspension.
Its “TS System” patented by BH integrates the battery in the down tube in a simple and minimalist way. It incorporates a color LCD screen, with over 40 configurable functions and ergonomic remote control.
- Product advantages:
- Aluminum frame and suspension fork.
- Shimano Deore transmission, 1×11 speeds.
- Shimano MT420 hydraulic disc brakes, 180/180 mm.
- Brose motor and a 720 Wh battery, up to 155 km of autonomy.
Details:
| Frame | Aluminum: Sport Alloy 28 “Internal Cable Routing |
| Fork | SR Suntour NCX-D LO, 63mm travel |
| Motor | BROSE SMAG |
| Battery | 720Wh |
| Display | BH X Display Lite |
| Shifters | Shimano Deore, 1×11 speed |
| Rear derailleur | Shimano Deore, 11-Speed |
| Cassette | Shimano CSM5100, 11-51T teeth |
| Chain | Shimano HG60 |
| Crankset | FSA 38 teeth, 170mm |
| Brakes | Shimano MT420 4 Piston, Hydr. Disc Brake, 203/203 mm |
| Wheels | Alloy Double Wall |
| Tires | Schwalbe Big Apple 28×2.0 |
| Handlebar | BH MTB Alloy Riser 720mm |
| Headset | Tapered With Adapter |
| Saddle clamp | Quick Release |
| Saddle | Selle Royal Lift Atletic |
| Seatpost | Alloy 31.6 |
Geometries:

| Frame size | S | M | L |
| Seat tube (mm) | 450 | 500 | 550 |
| Top tube (mm) | 595 | 610 | 620 |
| Base length (mm) | 465 | 465 | 465 |
| Head tube (mm) | 160 | 160 | 160 |
| Steering angle (°) | 69 | 69 | 69 |
| Seat tube angle (°) | 74.8 | 74.3 | 74.3 |
| Stack (mm) | 640 | 640 | 640 |
| Reach (mm) | 421 | 431 | 441 |
MORE INFORMATION
| Frame | Aluminum: Sport Alloy 28 “Internal Cable Routing |
| Fork | SR Suntour NCX-D LO, 63mm travel |
| Motor | BROSE SMAG |
| Battery | 720Wh |
| Display | BH X Display Lite |
| Shifters | Shimano Deore, 1×11 speed |
| Rear derailleur | Shimano Deore, 11-Speed |
| Cassette | Shimano CSM5100, 11-51T teeth |
| Chain | Shimano HG60 |
| Crankset | FSA 38 teeth, 170mm |
| Brakes | Shimano MT420 4 Piston, Hydr. Disc Brake, 203/203 mm |
| Wheels | Alloy Double Wall |
| Tires | Schwalbe Big Apple 28×2.0 |
| Handlebar | BH MTB Alloy Riser 720mm |
| Headset | Tapered With Adapter |
| Saddle clamp | Quick Release |
| Saddle | Selle Royal Lift Atletic |
| Seatpost | Alloy 31.6 |
| Frame size | S | M | L |
| Seat tube (mm) | 450 | 500 | 550 |
| Top tube (mm) | 595 | 610 | 620 |
| Base length (mm) | 465 | 465 | 465 |
| Head tube (mm) | 160 | 160 | 160 |
| Steering angle (°) | 69 | 69 | 69 |
| Seat tube angle (°) | 74.8 | 74.3 | 74.3 |
| Stack (mm) | 640 | 640 | 640 |
| Reach (mm) | 421 | 431 | 441 |
| Gender |
Women Men |
| Groupe | Shimano Deore 11V |
| collection | Fins de Séries |
