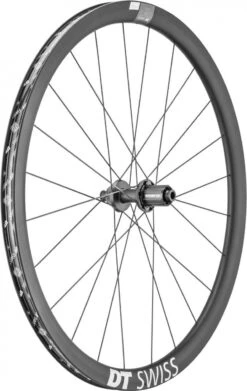

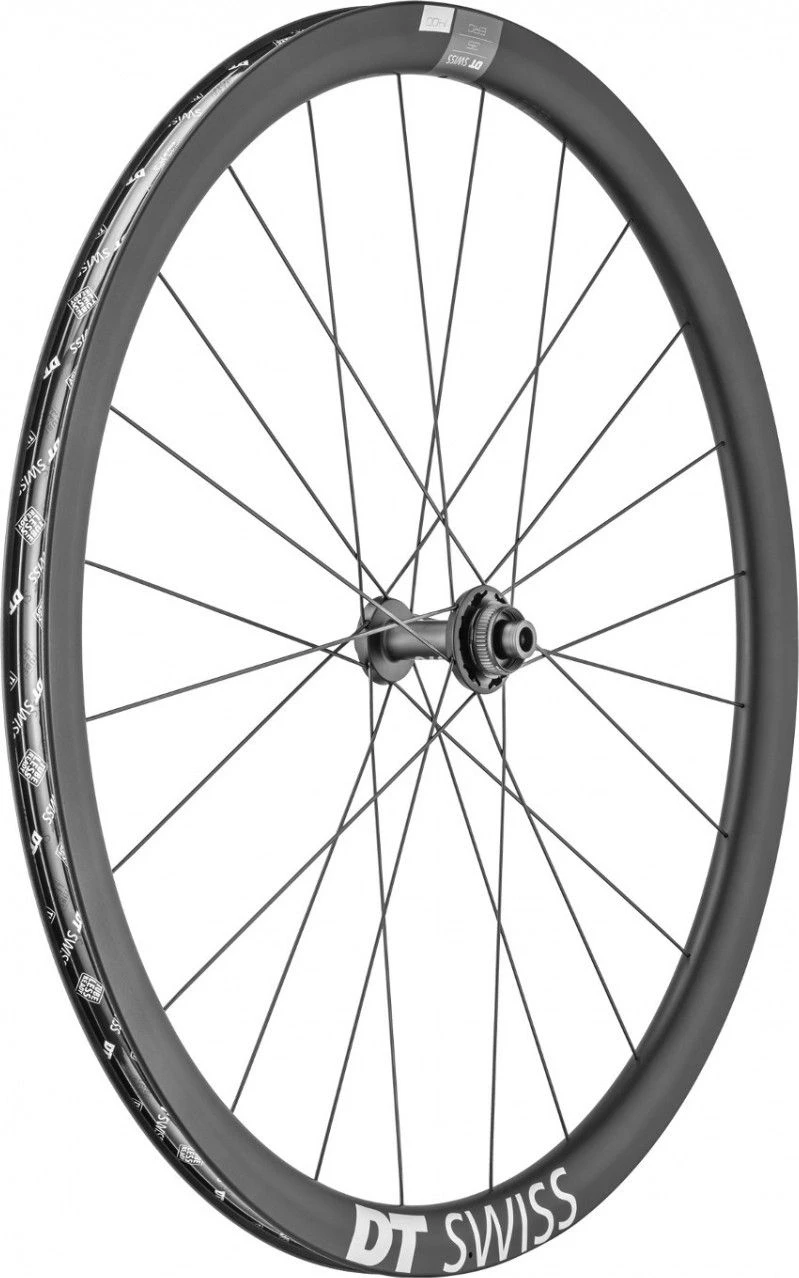

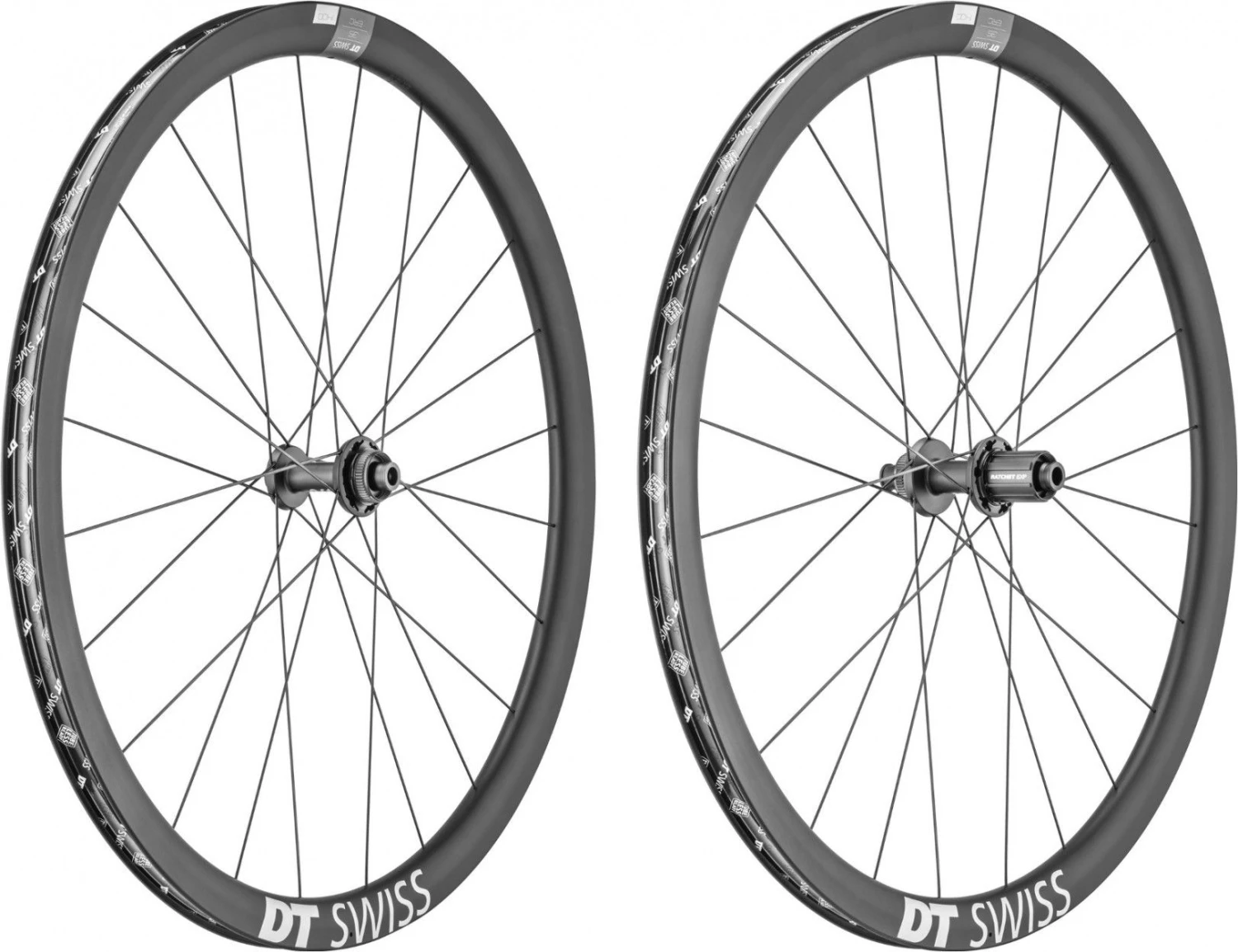

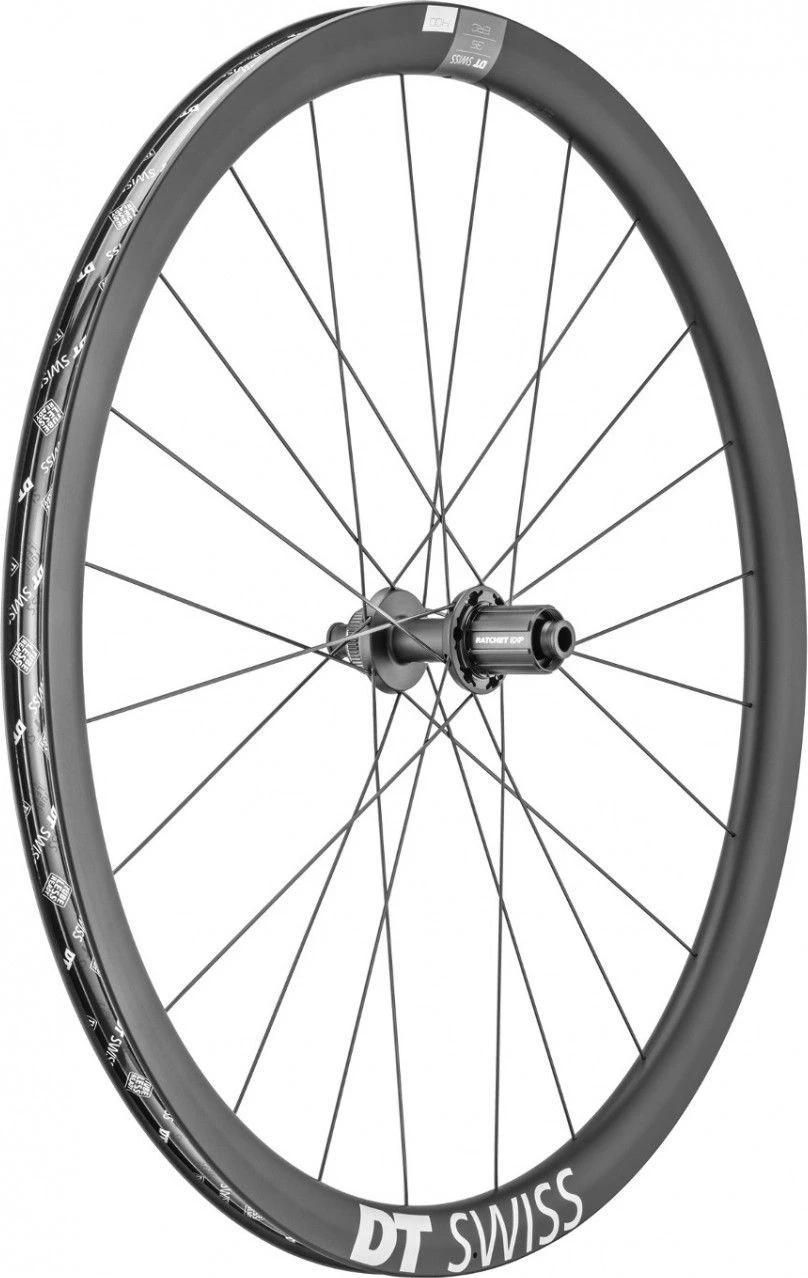

Dt-swiss DT Swiss ERC 1400 Dicut 650b 35 Mm Wheelset | 12×100 – 12×142 Mm | Center Lock | 2022

Offering the perfect balance between aerodynamics and comfort, the DT Swiss ERC 1400 Dicut wheel will be up to all your ambitions. Whatever the terrain you encounter, with their Aero+ rims with an optimized profile, the ERC wheels ensure constant control during long endurance rides. You won’t even see the miles ticking by when riding on larger, more comfortable tires (up to 32mm wide). Propulsion and speed are provided by the Ratchet Exp freewheel system, Aero Comp spokes, and the 240 Dicut Aero hub. All you have to do is enjoy your outing.

Fast and light. The DT Swiss ERC 1400 DICUT 35 is an agile wheel for your variable riding, also suitable for KOM hunters.

The + product:

• Revised rim profile for better crosswind stability and better aerodynamic drag.
• Precise engagement thanks to Ratchet EXP freewheel technology.
• The patented T-spoke nipples ensure perfect aerodynamic alignment of the DT aero comp spokes.
• Two different rim heights for an ideal weight/aerodynamic performance ratio: 35 or 45 mm.

Details:

General :

• Weight: 630g (front) + 749g (rear).
• Max weight of the system: 120 kg.
• ASTM classification: 2.

Rim :

• Material: carbon.
• Tire interface: Hooked / Crotchet tubeless TC.
• Valve hole: Presta.
• Wheel diameter: 27.5″ / 650b.
• Sticker type: Waterslide.

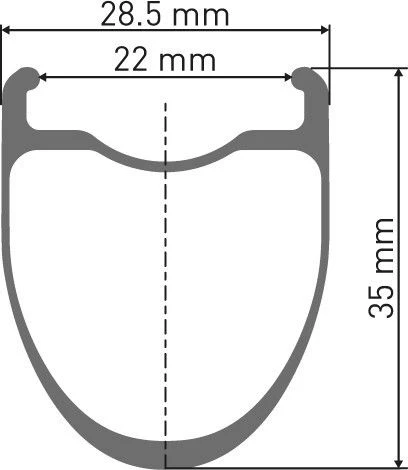

• Internal width: 22mm.
• External width: 28.5 mm.
• Rim height: 35mm.

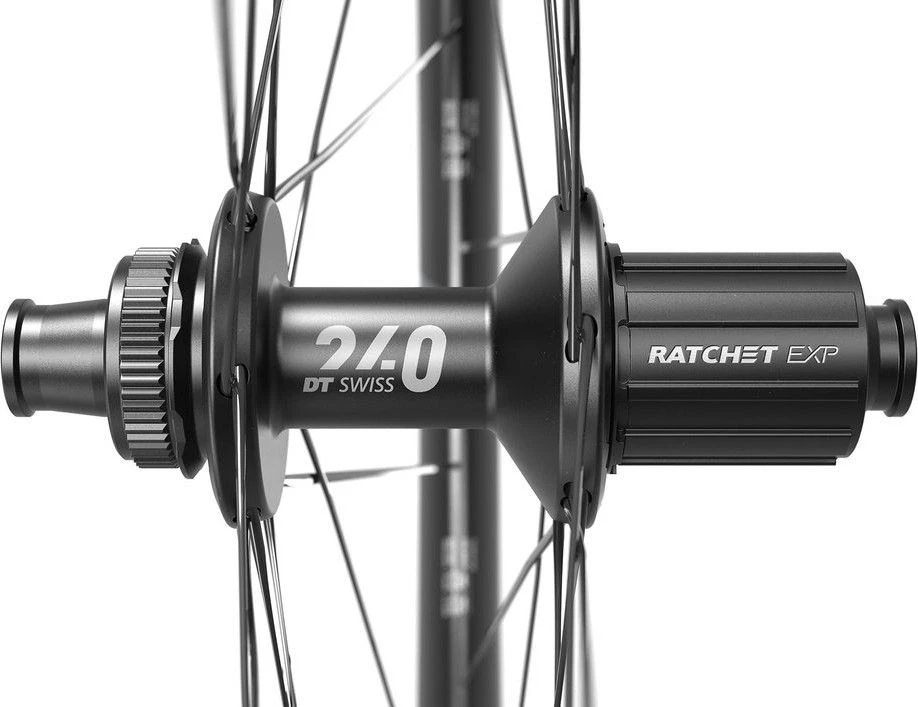

Hub :

• Hub type: 240.
• Axle System: RWS Thru Axle 12mm.
• Center distance: 100 mm (front), 142 mm (rear).
• Braking system: Disc, Center Lock.
• Freewheel body: Shim. RD. 11SP Light (ASL11).
• Freewheel: Ratchet EXP 36.

Spokes and Nipples :

• Left spokes: DT aero comp t-head.
• Straight pull spokes: DT aero comp t-head.
• Spoke Type: Two-cross (1:1).
• Nipples: DT Pro Lock hidden aluminum.

Comes with :

• 25mm tubeless rim tape.
• Tubeless Valve 26-35mm.
• Valve Guard.
• Sram XDR Road freewheel body.

Reference :

• WERC140AJDXCA19270: Front wheel – ERC 1400 Dicut 650b DB – 35 mm Center Lock 12/100 mm.
• WERC140NJDICA19271: Rear wheel – ERC 1400 Dicut 650b DB – 35 mm Center Lock 12/142 mm – Shim. RD. 11SP Light (ASL11).
