Deda DCR 1.5 ” – 1.5 ” Integrated Headset

Integrated headset for the DCR (Deda internal cable routing) system and compatible with Vinci, Alanera and Superbox stems.

It allows full integration of cables through the headset bearing.
The DCR system works with a standard tapered steerer tube (1-1 / 8 “- 1.5”), but requires a 52mm (1.5 “) top headset bearing.
The special compression ring design leaves room for the cables to fit into the space between the headset bearing and the fork.
The DCR topcover for Alanera and Superbox is included in the kit.

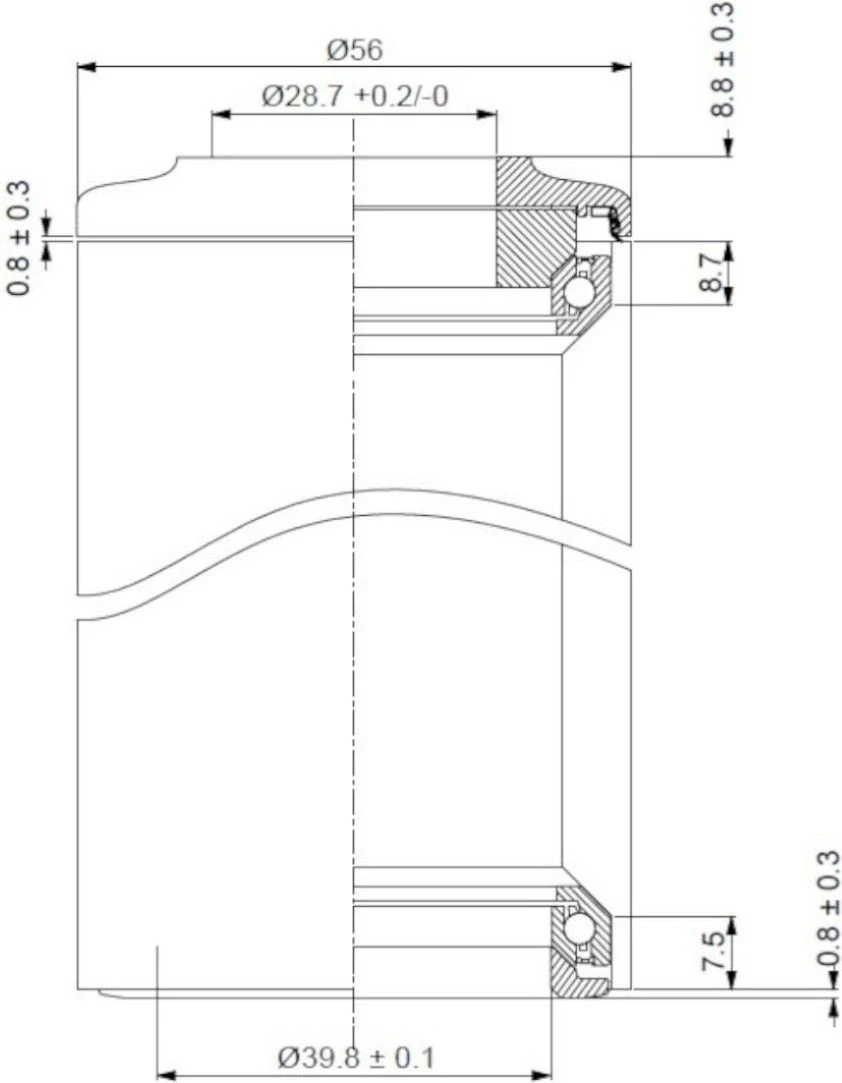

Details:

• Headset for frame: 1.5 “- 1.5”.
• SHIS high: IS52 / 40
• SHIS bottom: IS52 / 40
• Roll up / down 45/45 °
• Head tube: ø 56.0 mm
• Stainless steel bearing
• Aluminum cup AL6061
• Compatible with 1 ” 1/8 – 1.5 ” taper pivot
• Top cover: ø 56 mm
• Bearing height: 9.6 mm (8.8 + 0.8)
• Weight: 80g
• Note: Compatible with 56mm diameter steerer tube designed for 1.5 “bearings (upper and lower).
