BMX Sunday Darkwave Frame Matte Dusk Fade

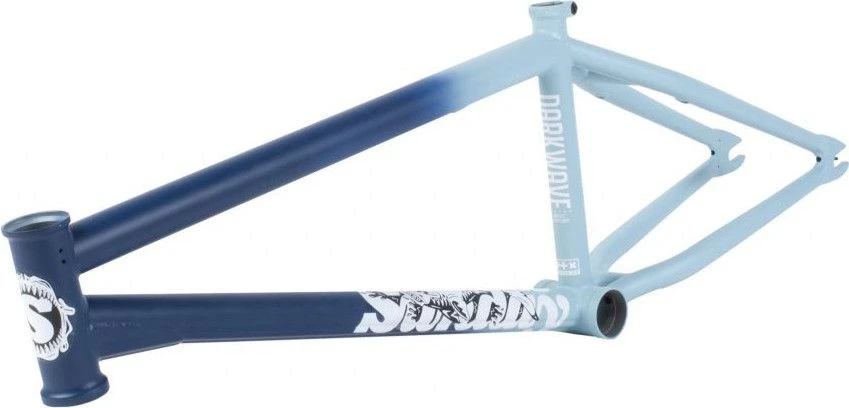

The Darkwave is constructed from 100% 4130 chromoly, it also features the bump-resistant corrugated downtube to give riders extra peace of mind when things don’t go as planned. It stays clean with refined details like an integrated seat clamp, tapered seat stays and integrated chain tensioners. Removable brake hardware and gyro tabs are also available when you need them.
Geometrically, the Darkwave has a 75.25 ° head tube angle to keep the front end responsive, and a 13.25 “slammed chainstay combined with 9.25” support to give it the right balance of dynamism. and stability.
All of this makes the Darkwave an affordable and versatile signature frame designed to handle bunnyhops, massive drops, and every trick combo possible.

Details:

• 100% chromoly 4130 frame
• Geometry and signature decals Broc Raiford.
• Removable U-Brake hardware and gyroscopic tabs
• Integrated seat clamp

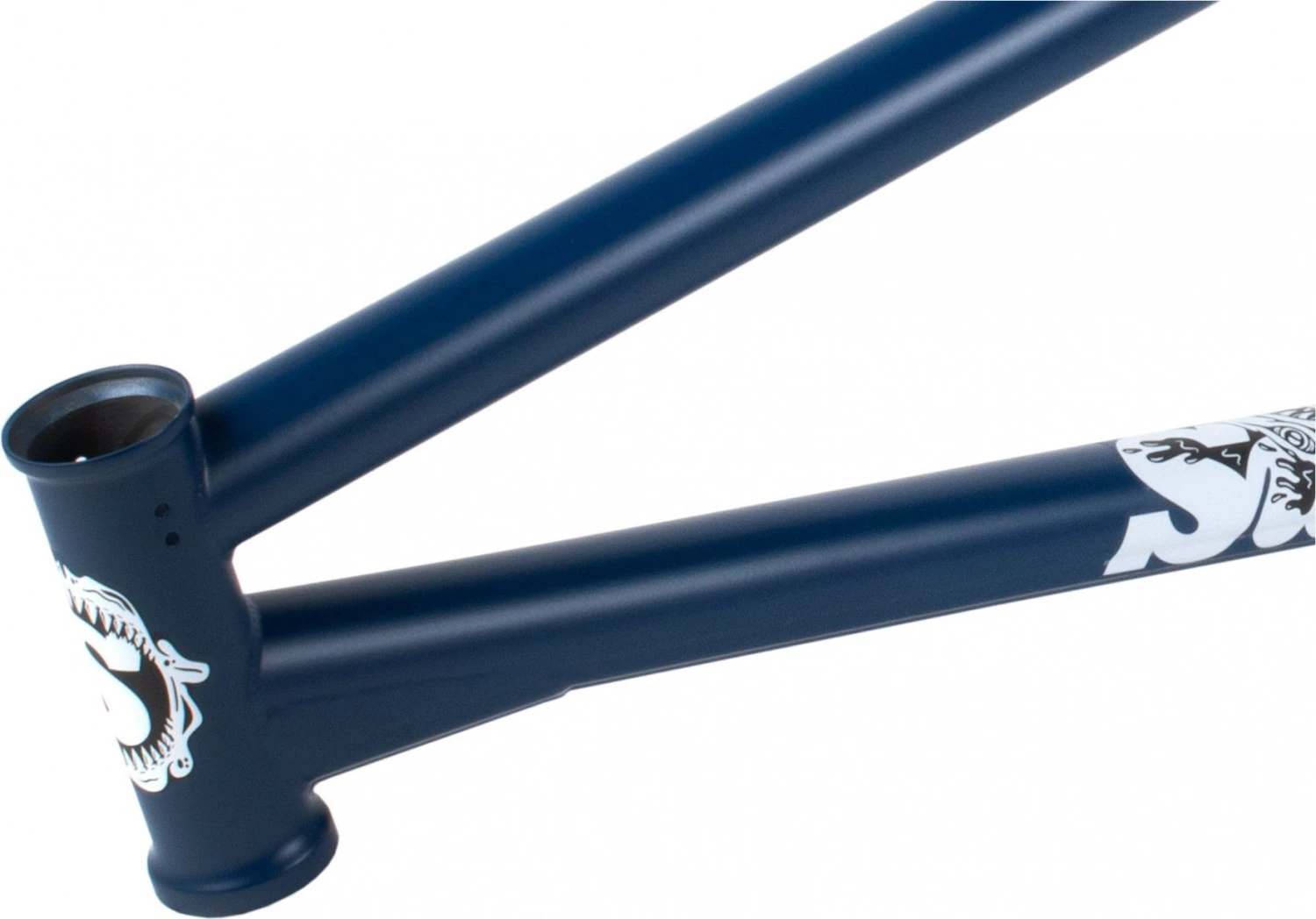

• Wave Down Tube: Downtube bumps are common with competitive frames and significantly weaken the front of your bike. The 1.45 “diameter double butted down tube features Sunday’s proven wave shape to combat dents against contacts from rail, ledge, fairing and all that happens to be projected to him.

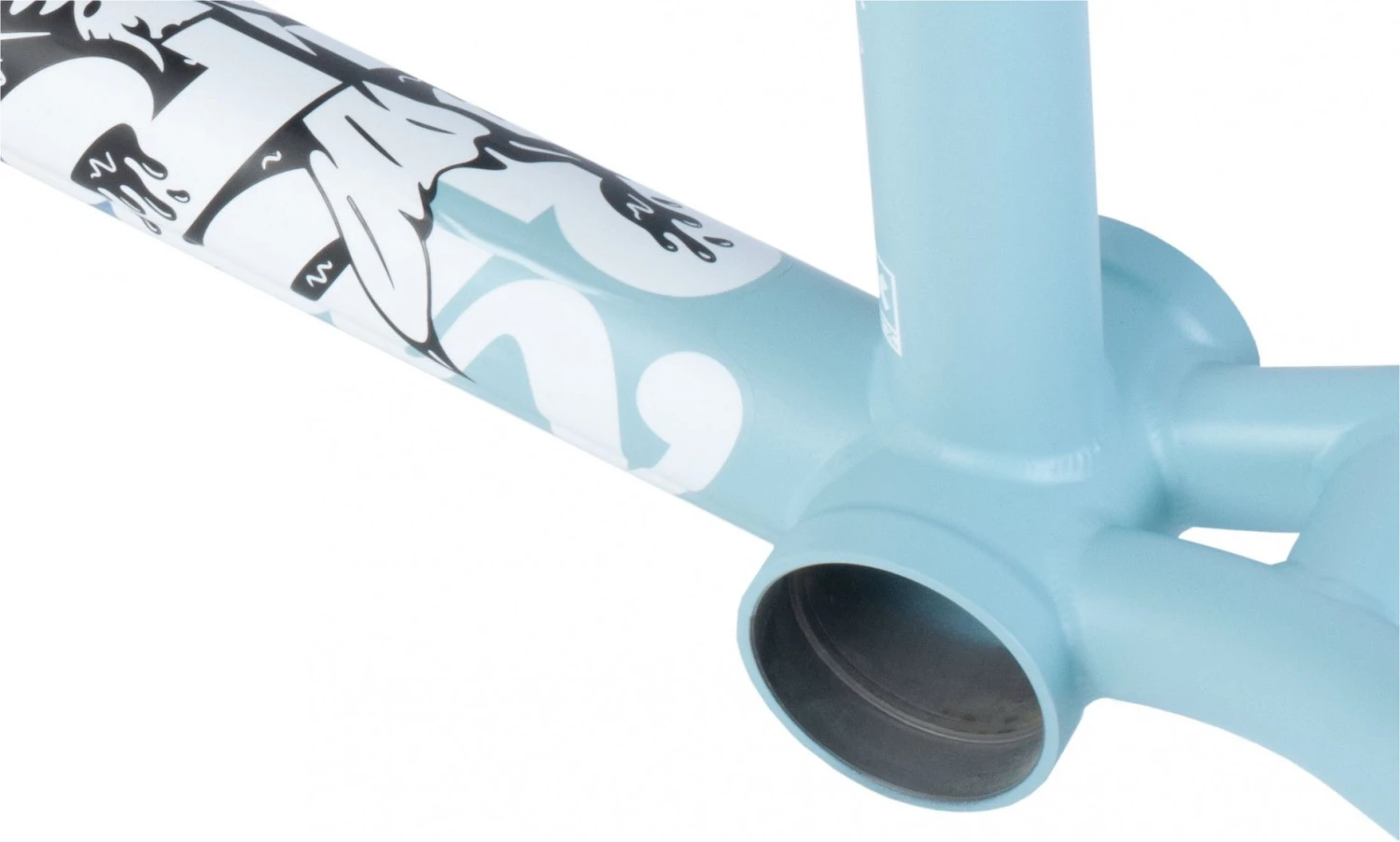

• Butt Seat Tube and Miter Cut Top Tube: The seat tube is where the three frame triangles meet and keeping this junction strong is essential.
• Tapered Chains and Shrouds: The chain and seat stay tapered to give the frame a refined, clean look while providing strength. They are both angled on the inside for better chain clearance and weight savings.
• Hollow Dropouts with Chain Tensioners: The 8mm wide hollow dropouts are as light as a solid 5mm dropout, but more than twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.

Geometries:

• Top Tube Lengths: 20.75 “, 21” or 21.25 “
• Head tube angle: 75.25 °
• Seat tube angle: 71 °
• Base Length: 13.25-13.5 “
• Bottom Bracket Height: 11.75 “
• Standover: 9.25 “
• Tire Clearance: 2.4 “
• Head tube length: 5.1 “
