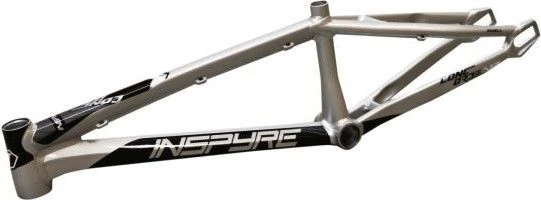

BMX Race Inspyre Concorde V2 Disc Iridium Silver Frame

The frame adopts a new geometry, the DNA of the Concorde is still very present but its geometry is slightly revisited, thus offering even more maneuverability and activity in steering.

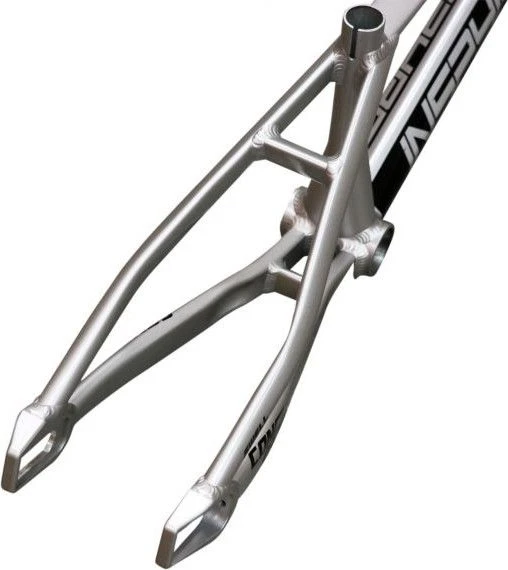

We note the arrival of Swell dropouts on the frame. A closed rear dropout developed by Inspyre. Wide and square, they are welded above the rear axle which offers 25% more rigidity on the rear triangle compared to the V1 version. This lateral rigidity is a real evolution which is felt when riding.

These new legs have been developed in order to avoid any twisting of the legs when braking with a disc brake. The Swell legs also allow you to adjust your rear base length to 25mm.

The frame was designed to accommodate large teeth, the Concorde V2 is certainly one of the only frames on the market to offer such an important chain passage. It is for example possible to pass a crown of 50 teeth associated with a pinion of 18 teeth the rear.

What to adjust the development without problems. On the mods kids and cruiser the tubes have been adapted to the needs and the morphology of the pilots. Offering a lighter frame in the Expert, Expert XL versions and a stiffened frame at the bottom bracket for the lengths of the tubes in the Cruiser and Cruiser XL versions.

DISC version incompatible with V-brakes. Inspyre d strongly recommends washing its products with a high pressure jet.

Inspyre declines all responsibility in the event of torsion or breakage of the rear bases in the event of the Pride Racing V4 dropout not being used. Supplied with Inspyre axle tensioner kit and Pride Racing V4 disc leg.

G om tries :

FRAME SIZE	Expert	Expert XL	Pro	Pro XL	Pro XXL	Pro XXXL	Cruiser
Upper Tube Length	495	511	525	540	552	565	555
Down Tube	545	558	562	575	585	596	617
Length of bases	337	337	360	365	373	373	380
Seat tube angle	71	71	72	72	72	72	70
Steering angle	73	73	74	74	74	74	73.5
Head tube size	110mm / 1 ” – 1/8	110mm / 1 ” – 1/8	115mm	115mm	115mm	115mm	115mm
Seatpost Diameter	22.2mm	22.2mm	27.2mm	27.2mm	27.2mm	27.2mm	27.2mm
Max section Wheels	20 x 1-3 / 8 ”	20 x 1.85	20 x 1.85	20 x 1.85	20 x 1.85	20 x 1.85	24 x 1.75
Staircase height	11	11	11.5	11.5	11.5	11.5	11.9
