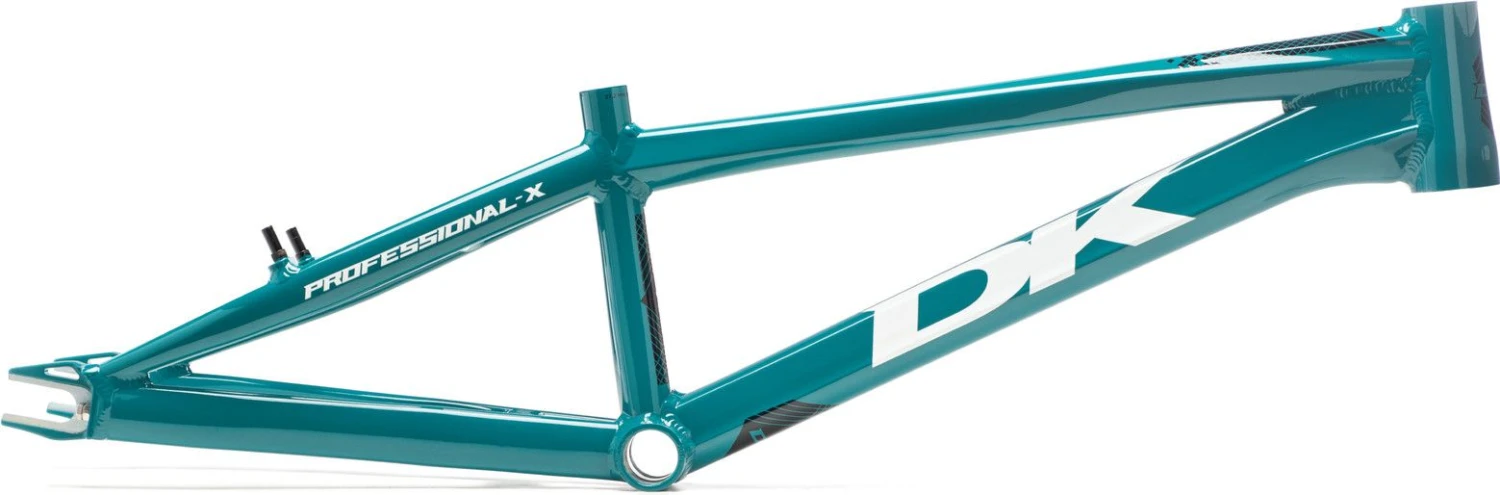

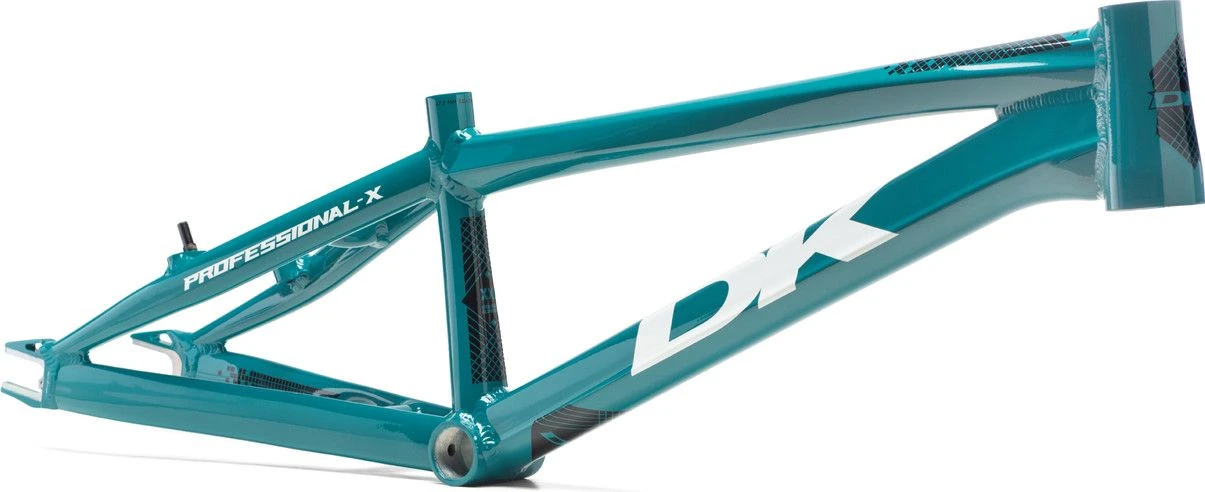

BMX Race DK Bicycles Professional-X Frame Blue

The DK Professional celebrates 10 years of podiums and high performance with an all new design called Professional-X . Building on the same proven geometry that has won countless UCI world titles and major Olympic events, the Professional-X has been remastered to be stiffer, faster.

The Professional-X frame features a set of hydroformed tubing with drop and hourglass shaped bridges, 3D dropouts with 20/15 / 10mm axle compatibility.
The low profile geometry of each frame size is designed for speed and stability.

Details:

• Constructed with lightweight 6000 series hydroformed aluminum tubing
• 1-1 / 8 “?1.5” tapered head tube (headset included with additional downstroke to work with standard non-taper 1-1 / 8 “forks)
• Internal brake cable routing
• Increased rigidity at the bottom bracket
• 20mm / 10mm dropouts (all axle hardware included) with integrated chain tensioners
• Threaded European bottom bracket (BB not included)
• Seat Post Diameter: 27.2mm

Frame size	PRO	XL	XXL	XXX	CRUISE
Upper tube	20.5 ?	21 “	21.5 ?	22 ?	21.75 ?
Chain length	14.83 ?	14.83 ?	15 ?	15 ?	15.25 ?
Steering angle	74º	74º	74º	74º	73º
Seat tube angle	72º	72º	72º	72º	72º
BB Drop	-35mm	-35mm	-35mm	-35mm	-5mm
Length Seat Tube	7.4 ?	7.4 ?	7.4 ?	7.4 ?	8 “
Rear axle size	10mm, 15mm, 20mm	10mm, 15mm, 20mm	10mm, 15mm, 20mm	10mm, 15mm, 20mm	10mm, 15mm, 20mm
Weight	1.79 KG	1.80 KG	1.84 KG	1.85 KG	1.84 KG
