Note : Please note that specifications are subject to change without notice, based on component availability and other factors.

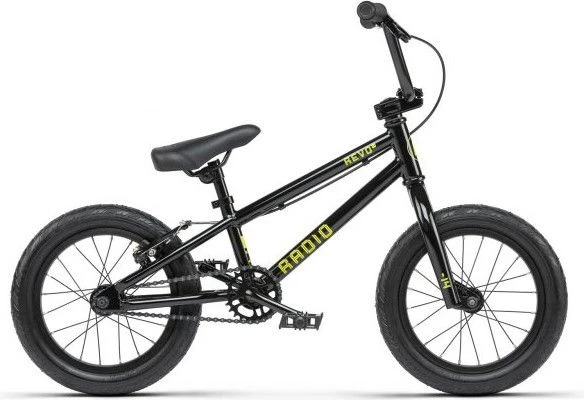

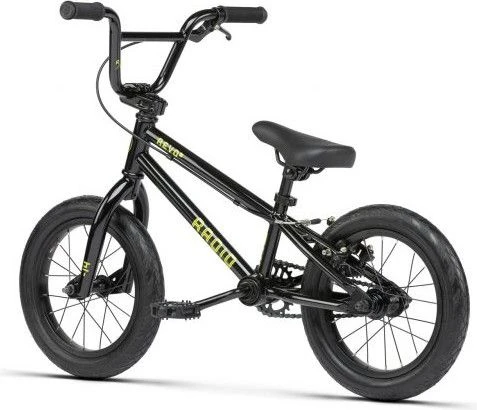

The BMX Freestyle Radio Revo 14 is designed with a steel fork frame. It allows you to get your first sensations in BMX. Everything about this BMX has been chosen to ensure that this bike has the best possible equipment to make learning BMX as enjoyable as possible. The Revo 14 gives young riders the opportunity to have a faster and more responsive bike.
The + product:
- Frame and fork in 1020 hi-ten steel.

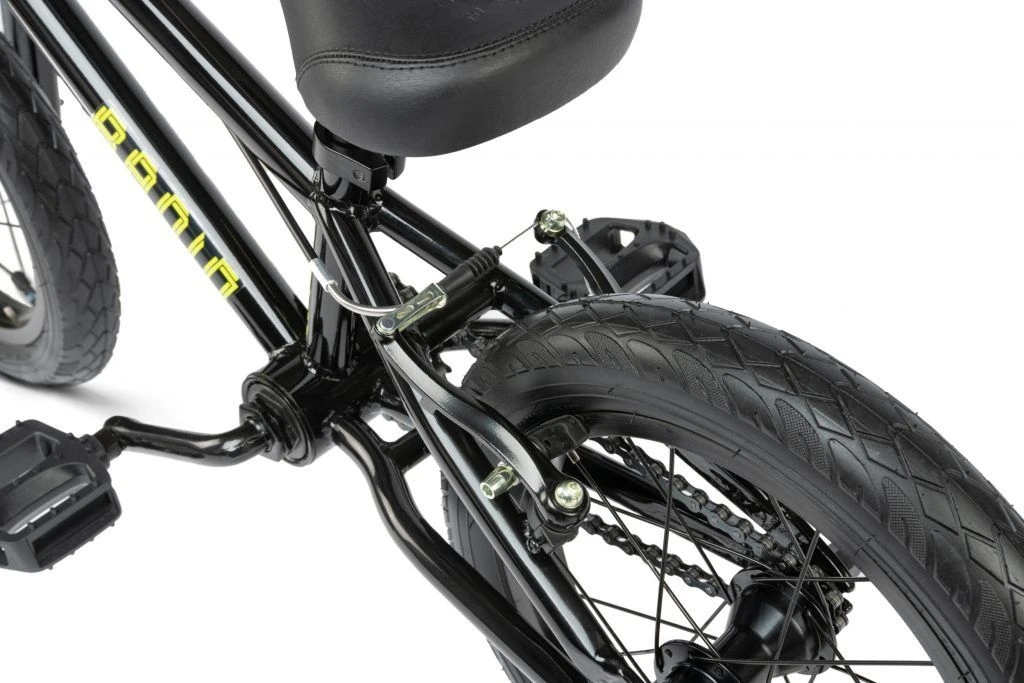

- Rear AM-V Radio V-Brakes
- Radio Rookie 1 piece steel crankset.
Details:
| Frame | Steel: RADIO REVO 14 frame, full 1020 hi-ten |
| Fork | Steel: RADIO Rookie 14 1020 hi-ten fork, tapered legs |
| Sprocket | RADIO ROOKIE sprocket, steel, 25 teeth |
| Chain | KMC S1 |
| Crankset | RADIO ROOKIE 1pc crank, forged, crmo, 102mm |
| Bottom bracket | RADIO US bb set, loose ball |

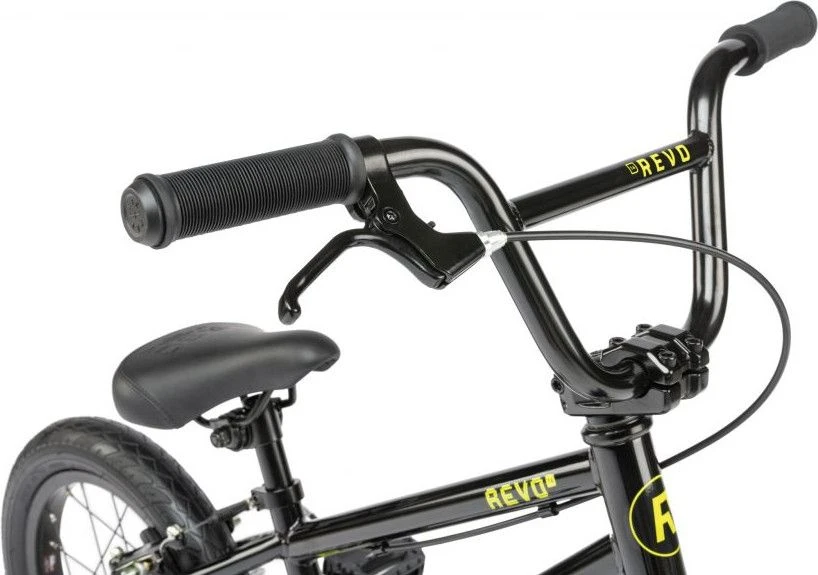

| Brake levers | RADIO Junior alloy brake lever |
| Brakes | RADIO AM caliper brake, alloy, front / RADIO AM-V v-brake, alloy, rear |

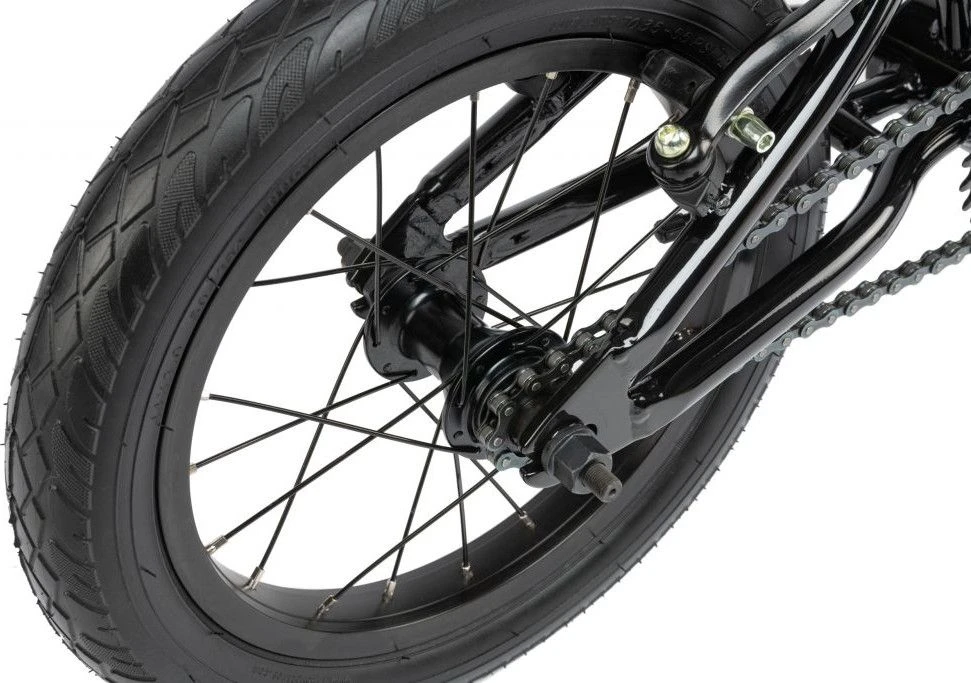

| Wheels | Rims: SALT AM rim, straight single wall, 8 p.m. / Hubs: RADIO Rookie steel hub, lb, 8 p.m. |
| Tires | RADIO Rookie tires, 2.0″ |
| Handlebar | RADIO REVO 14 bar, hi-ten, Rise 6.5″, Width 22.4″, Backsweep 8 °, Upsweep 2.5 ° |
| Grips | RADIO JUNIOR grips, flangeless, 110mm |
| Stem | SALT JUNIOR topload stem, 40mm reach |
| Headset | FSA a-head-set loose ball |
| Saddle | RADIO Century railed seat |
| Pedals | RADIO JUNIOR pedals, nylon |
| Total weight | 8.825 kg |
| Colors | Black |
Geometries:

| Wheel size (inch) | 14 |
| Seat tube | — |
| Upper tube | 13.7 “ |
| Base length | 10.55 “ |
| Steering angle (°) | 72 |
| Seat tube angle (°) | 73 |
| Bottom bracket height | 7.5 “ |
| Standover | 5.5 “ |
MORE INFORMATION
| Frame | Steel: RADIO REVO 14 frame, full 1020 hi-ten |
| Fork | Steel: RADIO Rookie 14 1020 hi-ten fork, tapered legs |
| Sprocket | RADIO ROOKIE sprocket, steel, 25 teeth |
| Chain | KMC S1 |
| Crankset | RADIO ROOKIE 1pc crank, forged, crmo, 102mm |
| Bottom bracket | RADIO US bb set, loose ball |
| Brake levers | RADIO Junior alloy brake lever |
| Brakes | RADIO AM caliper brake, alloy, front / RADIO AM-V v-brake, alloy, rear |
| Wheels | Rims: SALT AM rim, straight single wall, 8 p.m. / Hubs: RADIO Rookie steel hub, lb, 8 p.m. |
| Tires | RADIO Rookie tires, 2.0″ |
| Handlebar | RADIO REVO 14 bar, hi-ten, Rise 6.5″, Width 22.4″, Backsweep 8 °, Upsweep 2.5 ° |
| Grips | RADIO JUNIOR grips, flangeless, 110mm |
| Stem | SALT JUNIOR topload stem, 40mm reach |
| Headset | FSA a-head-set loose ball |
| Saddle | RADIO Century railed seat |
| Pedals | RADIO JUNIOR pedals, nylon |
| Total weight | 8.825 kg |
| Colors | Black |
| Wheel size (inch) | 14 |
| Seat tube | — |
| Upper tube | 13.7 “ |
| Base length | 10.55 “ |
| Steering angle (°) | 72 |
| Seat tube angle (°) | 73 |
| Bottom bracket height | 7.5 “ |
| Standover | 5.5 “ |
| Gender | Not Specified |
| collection | 2021 |
